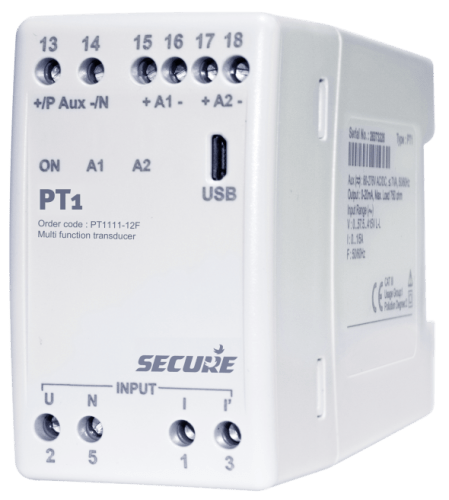

The Secure PT1 XX1-125 is a high-precision single-phase AC current transducer designed for accurate True RMS AC current measurement and analog signal conversion in industrial power monitoring and automation systems. Featuring Accuracy Class 0.2, it provides 2 galvanically isolated analog outputs (mA or Voltage) for seamless integration with PLCs, SCADA systems, DCS, and energy management platforms. Its compact DIN rail-mounted design, configurable input/output ranges, and Micro USB programming interface make it ideal for switchgear, motor control centers (MCC), OEM equipment, and industrial control panels. The PT1 series complies with IEC 60688 and offers reliable, high-accuracy performance for demanding industrial applications.
Single-phase, transducer, output 2 - 1ph Single Function Transducer, 2 Output, Type mA or V - AC Current Transducer, Accuracy Class 0.2 - PT1 XX1-125
| Parameter | Specification |
|---|---|
| Brand | Secure |
| Model | PT1 XX1-125 |
| Product Type | AC Current Transducer |
| System | Single Phase |
| Measurement | AC Current (True RMS) |
| Accuracy Class | 0.2 |
| Analog Outputs | 2 Isolated Outputs |
| Output Type | Configurable (mA / Voltage) |
| Current Input | 1 A / 5 A CT |
| Measuring Range | 0–150% of Nominal Current |
| Frequency | 45–55 Hz or 55–65 Hz |
| Response Time | 100–220 ms |
| Mounting | DIN Rail (EN 50022) |
| Configuration | Micro USB with ConfigView Software |
| Protection | IP40 (Housing), IP20 (Terminals) |
| Standards | IEC 60688, IEC 61010-1, IEC 61010-2-30, IEC 61326-1 |
| Applications | PLC Panels, MCC, Switchgear, SCADA Systems, DCS, Industrial Automation, Energy Monitoring (Secure) |
