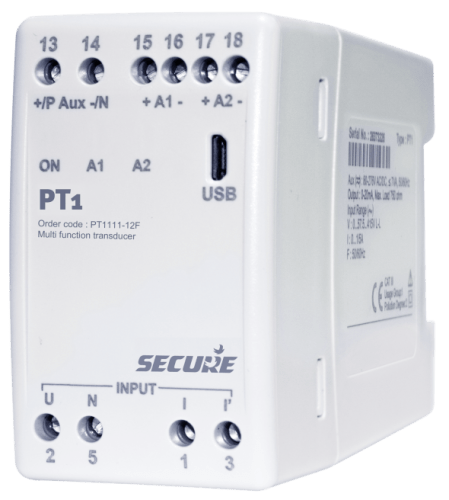

The Secure PT1 XX1-123 is a high-precision single-phase frequency transducer designed for accurate frequency measurement and analog signal conversion in industrial power monitoring and automation systems. Featuring Accuracy Class 0.2, it provides precise frequency measurement with 2 galvanically isolated analog outputs (mA or Voltage) for seamless integration with PLCs, SCADA systems, DCS, and energy management platforms. Its compact DIN rail-mounted design, configurable input/output ranges, and USB programming interface make it ideal for switchgear, power distribution panels, generators, OEM equipment, and industrial control applications.
| Parameter | Specification |
|---|---|
| Brand | Secure |
| Model | PT1 XX1-123 |
| Product Type | Frequency Transducer |
| System | Single Phase |
| Measurement | Frequency |
| Accuracy Class | 0.2 |
| Analog Outputs | 2 Isolated Outputs |
| Output Type | Configurable (mA / Voltage) |
| Frequency Range | 45–55 Hz or 55–65 Hz |
| Voltage Input | 57.7–415 V AC (up to 500 V measuring range) |
| Response Time | 100–220 ms |
| Mounting | DIN Rail (EN 50022) |
| Configuration | Micro USB with ConfigView Software |
| Protection | IP40 (Housing), IP20 (Terminals) |
| Standards | IEC 60688, IEC 61010-1, IEC 61010-2-30, IEC 61326-1, DIN 50022 |
| Applications | PLC Panels, SCADA Systems, DCS, Switchgear, Generator Monitoring, Industrial Automation, Power Monitoring |
