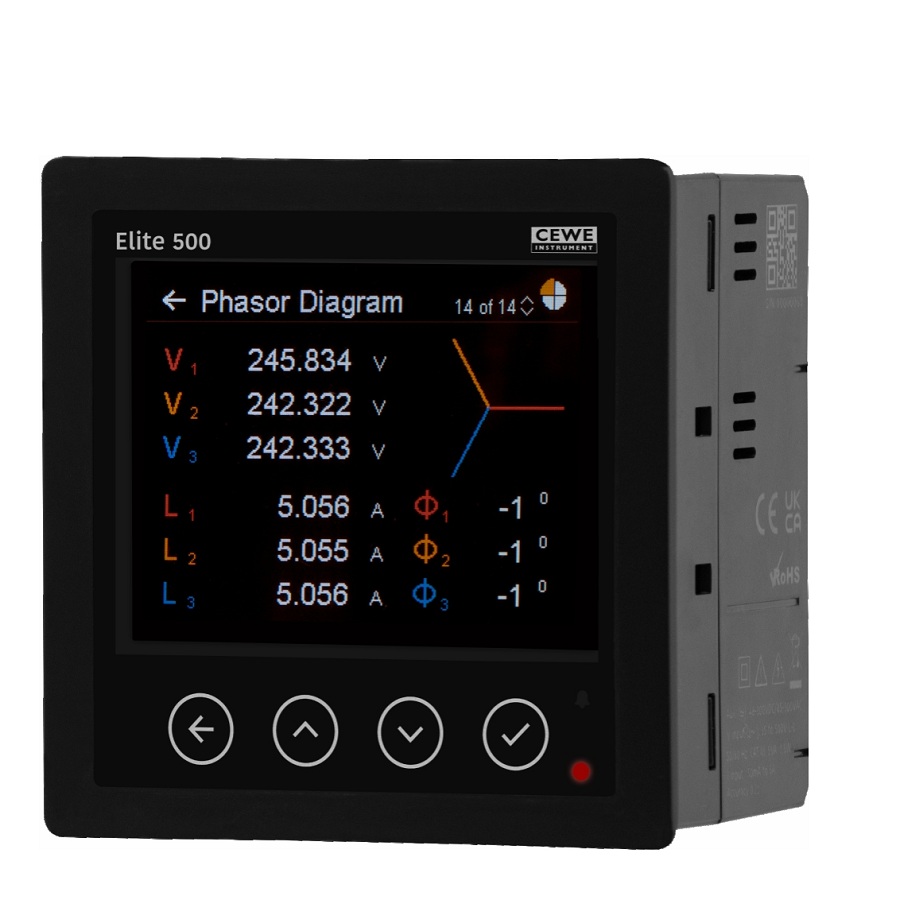

The Elite 500 Rogowski Coil Power Meter (Model: E500M-2012) is a high-performance multifunction energy analyzer from the Elite brand, designed for precise electrical monitoring in industrial and commercial environments. Built with advanced Rogowski coil technology, this model enables safe, non-intrusive current measurement, allowing installation without disconnecting existing conductors.
The Elite E500M-2012 is particularly suitable for high-current applications and retrofit installations, where conventional current transformers (CTs) are difficult to install. Its flexible Rogowski coils can be easily wrapped around busbars and cables, ensuring quick installation, improved safety, and minimal downtime.
This model provides comprehensive real-time monitoring of all key electrical parameters including voltage, current, active power (kW), reactive power (kVAR), apparent power (kVA), energy consumption (kWh), frequency, and power factor. With True RMS measurement capability, it ensures accurate readings even in systems with harmonics or non-linear loads.
The device features a compact 96x96 mm panel mount design and a bright LED/LCD display for clear visibility of electrical data. It also supports RS485 communication with Modbus RTU protocol, enabling seamless integration with SCADA systems, Building Management Systems (BMS), and energy monitoring platforms for remote access and analysis.
Overall, the Elite 500 Model E500M-2012 offers a reliable, flexible, and cost-effective solution for efficient energy monitoring and power management.
