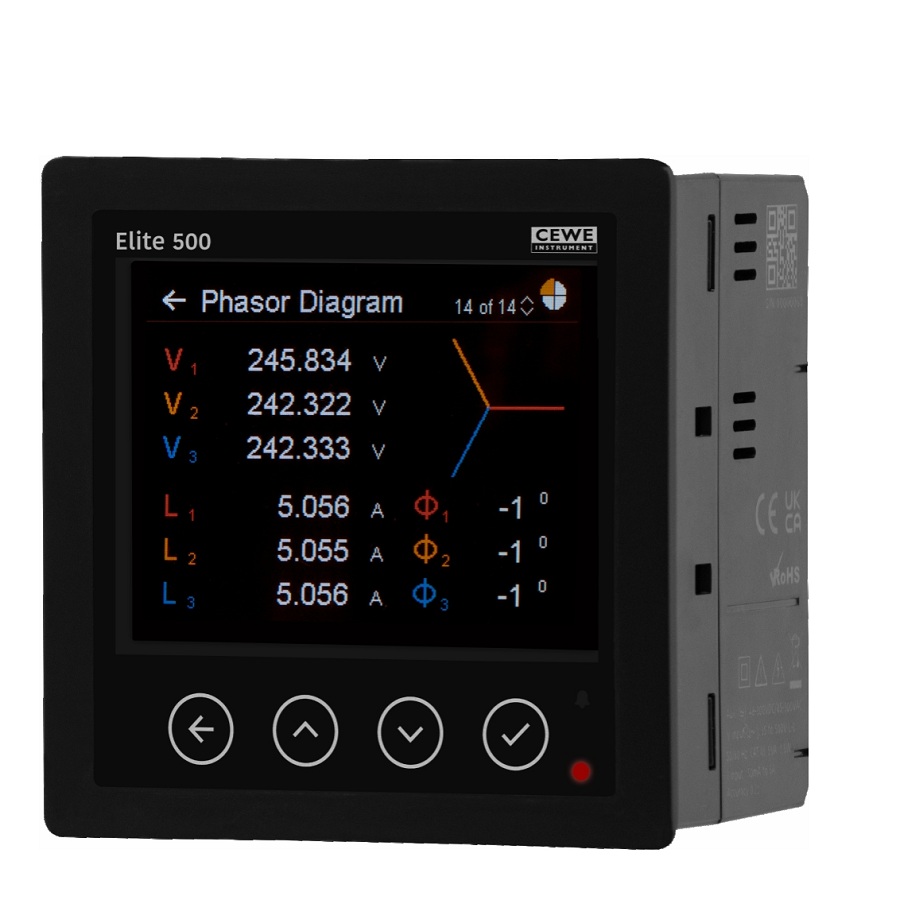

Elite 500 with Rogowski Coil – Model E500R-53E2
The Elite 500 Model E500R-53E2, integrated with a high-precision Rogowski Coil, is a next-generation AC current monitoring device designed to deliver superior accuracy, flexibility, and safety for modern industrial and commercial applications. This model is an ideal solution for environments where traditional current transformers (CTs) are difficult to install or where non-intrusive measurement is required.
The E500R-53E2 utilizes advanced Rogowski Coil technology, which provides a flexible and lightweight alternative to conventional current transformers. The coil can be easily wrapped around conductors without disconnecting the electrical circuit, enabling quick and safe installation. This non-intrusive approach significantly reduces downtime and makes the device highly suitable for retrofit projects, maintenance work, and complex electrical panel configurations.
The device ensures highly accurate AC current measurement across a wide operating range. With excellent linearity and minimal phase shift, it delivers precise readings even under varying load conditions. This makes it ideal for applications such as energy monitoring, load analysis, power quality monitoring, and electrical diagnostics.
Designed for panel mounting, the E500R-53E2 integrates seamlessly into electrical panels, switchgear systems, and industrial automation environments. Its compact and rugged design ensures durability while optimizing panel space. The device features a high-brightness LED display that provides clear, real-time readings, allowing operators to monitor system performance efficiently.
One of the key advantages of the Rogowski Coil is enhanced safety. Since it does not use a magnetic core, it eliminates the risk of dangerous open-circuit voltages commonly associated with traditional CTs. This ensures safer operation in high-current environments and provides better protection for both equipment and personnel.
The E500R-53E2 is built using high-quality industrial-grade materials that offer excellent resistance to environmental factors such as dust, heat, and electrical interference. This ensures long-term reliability and stable performance even in harsh industrial conditions. The robust construction minimizes maintenance requirements and ensures extended service life.
The device is equipped with advanced safety features including overload protection, short circuit protection, and voltage protection. These built-in safeguards help maintain system stability and protect connected equipment from potential damage.
In addition to its performance and safety features, the E500R-53E2 is designed with energy efficiency in mind. It consumes minimal power while delivering high operational performance, making it a cost-effective solution for continuous industrial usage.
The E500R-53E2 is widely used across industries such as power distribution, renewable energy, manufacturing, and industrial automation. It is particularly beneficial in applications that require flexible installation and accurate high-current measurement without interrupting system operations.
In conclusion, the Elite 500 with Rogowski Coil (E500R-53E2) is a reliable, efficient, and advanced current monitoring solution. Its flexibility, safety, and precision make it an excellent choice for modern industrial applications.
General Specifications:
Electrical Specifications:
Display Features:
Rogowski Coil Features:
Environmental Specifications:
Mechanical Specifications:
Safety & Protection:
Applications:
Installation & Maintenance:
