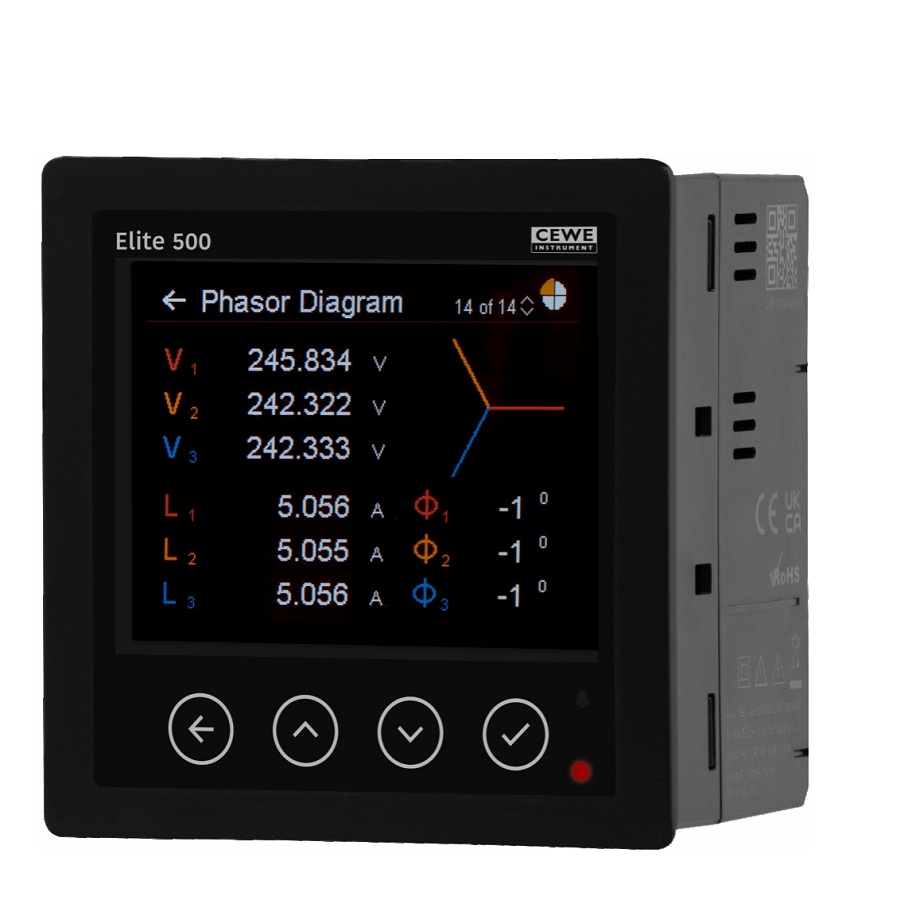

Elite 500 with Rogowski Coil – Model E500R-52E2
The Elite 500 Model E500R-52E2, integrated with a high-precision Rogowski Coil, is an advanced AC current monitoring device designed for modern industrial and commercial electrical applications. This model delivers exceptional accuracy, flexibility, and safety, making it a superior alternative to traditional current transformers (CTs), particularly in installations where space limitations and non-intrusive measurement are critical.
The E500R-52E2 utilizes Rogowski Coil technology, which offers a flexible and lightweight sensing solution for current measurement. Unlike conventional CTs, the Rogowski coil can be easily wrapped around conductors without disconnecting the circuit. This non-intrusive installation reduces downtime and simplifies retrofitting in existing systems, making it ideal for maintenance, upgrades, and complex panel installations.
The device ensures highly accurate AC current measurement across a wide operating range. With excellent linearity and minimal phase shift, the E500R-52E2 provides precise readings even under fluctuating load conditions. This makes it suitable for applications such as energy monitoring, load analysis, power quality assessment, and electrical diagnostics.
Designed for panel mounting, the E500R-52E2 integrates seamlessly into electrical control panels, switchgear systems, and automation setups. Its compact and rugged construction ensures durability while optimizing panel space. The device features a high-brightness LED display that provides clear, real-time readings, allowing operators to monitor electrical parameters efficiently.
One of the most important advantages of the Rogowski Coil is enhanced safety. Since it does not use a magnetic core, it eliminates the risk of dangerous open-circuit voltages commonly associated with traditional CTs. This ensures safe operation in high-current environments and protects both equipment and personnel.
The device is constructed using industrial-grade materials that provide excellent resistance to environmental factors such as heat, dust, and electrical interference. This ensures long-term reliability and stable performance even in harsh industrial conditions. Its robust construction minimizes maintenance requirements and extends operational life.
The E500R-52E2 is equipped with advanced safety features including overload protection, short circuit protection, and voltage protection. These features help safeguard both the device and connected systems, ensuring stable and secure operation.
In addition to its high performance and safety features, the model is designed for energy efficiency. It consumes minimal power while delivering reliable output, making it a cost-effective solution for continuous industrial usage.
The E500R-52E2 is widely used across industries such as power distribution, renewable energy, manufacturing, and industrial automation. It is particularly effective in applications requiring flexible installation and accurate high-current measurement without interrupting the system.
In conclusion, the Elite 500 with Rogowski Coil (E500R-52E2) is a modern, reliable, and efficient current monitoring solution. Its flexibility, precision, and safety make it an ideal choice for advanced industrial applications.
General Specifications:
Electrical Specifications:
Display Features:
Rogowski Coil Features:
Environmental Specifications:
Mechanical Specifications:
Safety & Protection:
Applications:
Installation & Maintenance:
