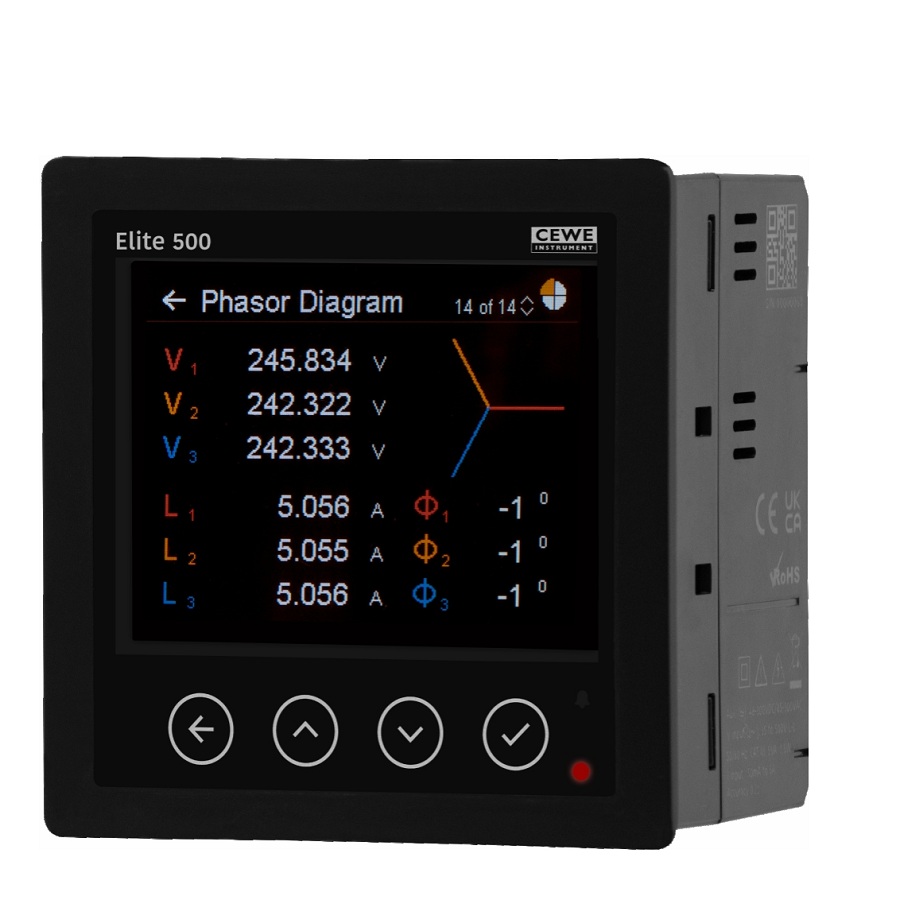

Elite 500 with Rogowski Coil – Model E500R-54D2
The Elite 500 Model E500R-54D2, integrated with a high-performance Rogowski Coil, is a next-generation AC current monitoring device designed to deliver exceptional accuracy, flexibility, and safety in modern industrial and commercial electrical systems. This model is specifically engineered for applications where traditional current transformers (CTs) are difficult to install or where non-intrusive measurement is required.
The Rogowski Coil technology offers significant advantages over conventional CT-based systems. Its flexible and lightweight design allows it to be easily wrapped around conductors without disconnecting the electrical circuit. This non-invasive installation reduces downtime and makes the E500R-54D2 ideal for retrofit applications, maintenance work, and complex panel configurations.
The E500R-54D2 provides highly accurate AC current measurement across a wide range. It features excellent linearity and minimal phase shift, ensuring reliable performance even under fluctuating load conditions. This makes it suitable for applications such as energy monitoring, load analysis, power quality monitoring, and electrical diagnostics.
Designed for panel mounting, the device integrates seamlessly into electrical panels, switchgear systems, and automation setups. Its compact and rugged construction ensures long-term durability while optimizing panel space. The model is equipped with a high-brightness LED display that provides clear, real-time readings, enabling operators to monitor current values efficiently.
Safety is one of the most important advantages of the Rogowski Coil technology. Since it does not use a magnetic core, it eliminates the risk of dangerous open-circuit voltages that are commonly associated with traditional current transformers. This ensures safer operation in high-current environments and provides better protection for both personnel and equipment.
The device is built using high-quality industrial-grade materials that offer excellent resistance to environmental factors such as dust, heat, and electrical noise. This ensures reliable performance even in harsh industrial environments. The robust design minimizes maintenance requirements and ensures a long operational lifespan.
The E500R-54D2 is equipped with advanced safety features including overload protection, short circuit protection, and voltage protection. These built-in protections help safeguard the device and connected systems, ensuring stable and secure operation.
In addition to its high performance and safety features, the model is designed for energy efficiency. It consumes minimal power while delivering reliable output, making it a cost-effective solution for continuous industrial operations.
The E500R-54D2 is widely used in industries such as power distribution, renewable energy systems, manufacturing plants, and industrial automation. It is especially beneficial in applications that require flexible installation and accurate high-current measurement without interrupting the system.
In conclusion, the Elite 500 with Rogowski Coil (E500R-54D2) is a highly reliable, efficient, and modern current monitoring solution. Its flexibility, precision, and safety make it an excellent choice for advanced industrial applications.
General Specifications:
Electrical Specifications:
Display Features:
Rogowski Coil Features:
Environmental Specifications:
Mechanical Specifications:
Safety & Protection:
Applications:
Installation & Maintenance:
