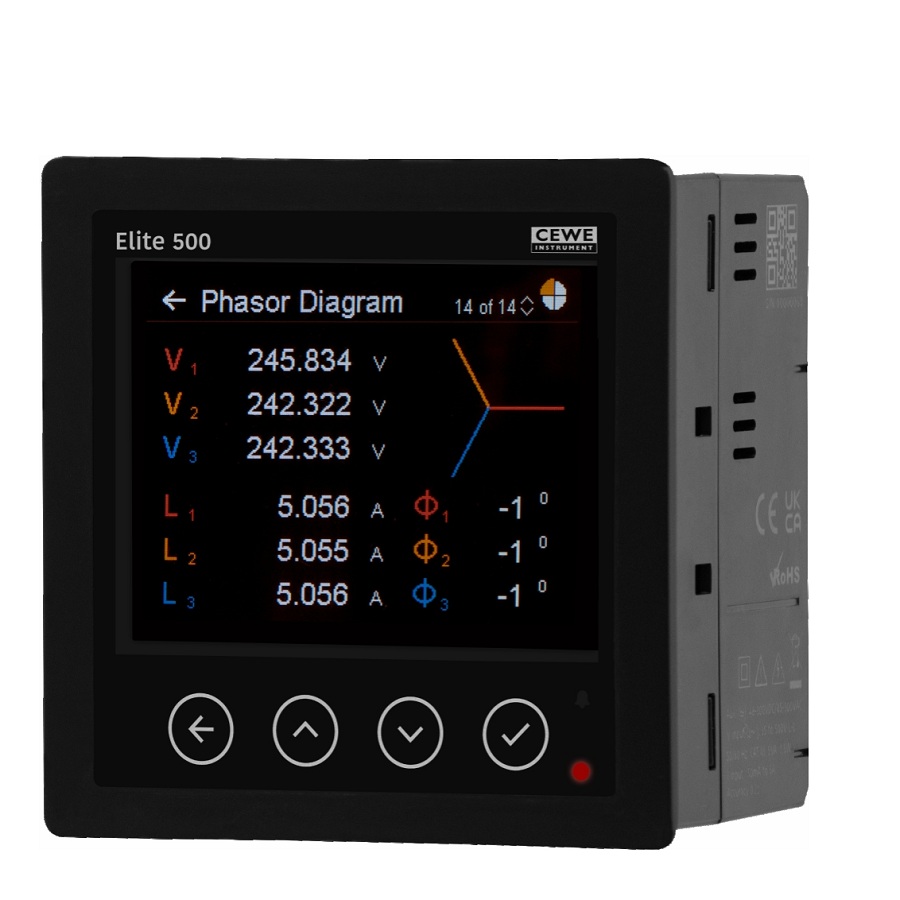

Elite 500 with Rogowski Coil – Model E500R-53D2
The Elite 500 Model E500R-53D2, integrated with a high-precision Rogowski Coil, is an advanced AC current monitoring device designed for modern industrial and commercial applications. This model offers exceptional flexibility, safety, and accuracy, making it an ideal alternative to conventional current transformers (CTs), especially in installations where space constraints and system downtime are critical concerns.
The Rogowski Coil technology used in the E500R-53D2 provides a significant advantage over traditional CTs. Its flexible and lightweight design allows it to be easily wrapped around conductors without disconnecting the circuit. This non-intrusive installation method reduces downtime and simplifies retrofitting in existing electrical systems, making it highly suitable for maintenance and upgrade applications.
The E500R-53D2 ensures highly accurate current measurement across a wide operating range. It delivers excellent linearity and minimal phase shift, ensuring reliable and precise readings even under fluctuating load conditions. This makes the device ideal for applications such as energy monitoring, load analysis, power quality monitoring, and electrical diagnostics.
Designed for panel mounting, this model integrates seamlessly into electrical control panels, switchgear systems, and industrial automation setups. Its compact and rugged design ensures durability while optimizing space utilization. The device is equipped with a high-brightness LED display that provides clear, real-time readings, enabling operators to monitor electrical parameters efficiently.
Safety is a key advantage of the Rogowski Coil technology. Unlike traditional CTs, it does not contain a magnetic core, eliminating the risk of dangerous open-circuit voltages. This makes the E500R-53D2 a safer solution for high-current applications, ensuring protection for both equipment and personnel.
The device is built using industrial-grade materials that provide excellent resistance to environmental conditions such as heat, dust, and electrical interference. This ensures long-term reliability and consistent performance even in harsh industrial environments. Its low maintenance requirement further enhances operational efficiency.
The E500R-53D2 is equipped with advanced protection features, including overload protection, short circuit protection, and voltage protection. These safety mechanisms help protect the device and connected systems from potential damage, ensuring stable and secure operation.
In addition to its performance and safety features, the model is designed for energy efficiency. It consumes minimal power while delivering high-performance output, making it suitable for continuous industrial operation.
The E500R-53D2 is widely used in industries such as power distribution, renewable energy, manufacturing, and industrial automation. It is especially beneficial in applications that require flexible installation and accurate high-current measurement without interrupting the system.
In conclusion, the Elite 500 with Rogowski Coil (E500R-53D2) is a reliable, efficient, and high-precision current monitoring solution. Its flexibility, durability, and advanced features make it an ideal choice for modern industrial environments.
General Specifications:
Electrical Specifications:
Display Features:
Rogowski Coil Features:
Environmental Specifications:
Mechanical Specifications:
Safety & Protection:
Applications:
Installation & Maintenance:
