MFM, 4 Line backlit LCD Display, RS-485 Modbus, Dim 96x96mm, accuracy class 1.0 ,

Product Description

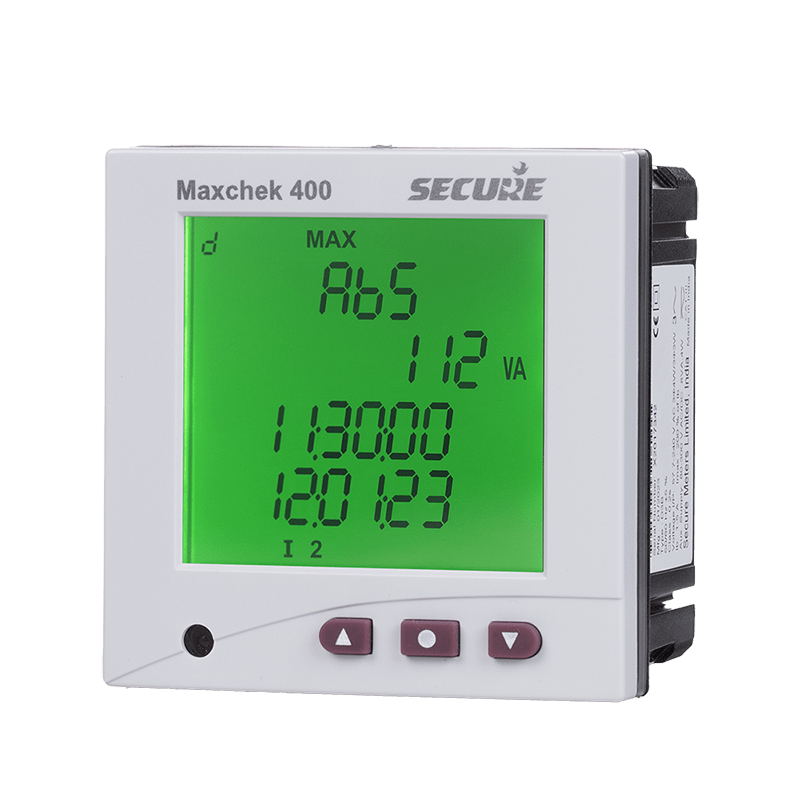

Multi Function Meter (MFM) – 4 Line Backlit LCD Display, RS-485 Modbus, 96x96mm Panel Mount

The Multi Function Meter (MFM) is a high-performance digital metering solution designed for accurate and real-time monitoring of electrical parameters in industrial, commercial, and automation environments. Equipped with a 4-line backlit LCD display, RS-485 Modbus communication, and a standard 96x96mm panel mount design, this MFM delivers a powerful combination of precision, reliability, and advanced connectivity.

Engineered using advanced microcontroller-based technology, the MFM provides highly accurate measurement of critical electrical parameters such as voltage, current, frequency, power, energy, and power factor. Its fast processing capability ensures real-time data acquisition, allowing users to monitor electrical systems efficiently and make quick operational decisions.

One of the key highlights of this Multi Function Meter is its 4-line backlit LCD display, which allows simultaneous viewing of multiple parameters. This enhances usability by eliminating the need to scroll through different screens. The backlit feature ensures clear readability even in low-light conditions, making it ideal for control panels, switchgear systems, and industrial environments.

The device is equipped with RS-485 Modbus RTU communication, enabling seamless integration with SCADA systems, PLCs, and energy management systems (EMS). This feature allows remote monitoring, centralized data collection, and advanced system analysis, making it suitable for smart industrial automation and Industry 4.0 applications.

Designed in a compact 96x96mm panel mount format, the MFM fits standard panel cut-outs and can be easily installed in electrical panels, distribution boards, and switchgear assemblies. Its rugged construction using industrial-grade materials ensures durability and reliable performance even in harsh conditions such as high temperatures, dust, and electrical disturbances.

The MFM offers a comprehensive range of measurement capabilities, including:

• Voltage (Phase-to-Phase & Phase-to-Neutral)
• Current (Per Phase)
• Active, Reactive & Apparent Power (kW, kVAR, kVA)
• Energy (kWh, kVAh, kVARh)
• Power Factor
• Frequency

These features make it ideal for applications such as energy monitoring, load management, power quality analysis, and system diagnostics. It enables industries to identify inefficiencies, reduce energy losses, and optimize overall system performance.

Safety and reliability are core strengths of this device. The MFM is designed to handle voltage fluctuations and electrical disturbances, ensuring stable and continuous operation. Built-in protection mechanisms help safeguard both the meter and connected equipment.

Energy efficiency is another major advantage of the Multi Function Meter. By providing accurate and real-time data, it allows users to monitor consumption patterns and implement effective energy-saving strategies, resulting in reduced operational costs.

The MFM is widely used in industrial plants, commercial buildings, power distribution networks, and automation systems. Its combination of advanced features, communication capability, and high accuracy makes it a preferred choice for engineers, facility managers, and energy professionals.

In conclusion, the Multi Function Meter (MFM) is a reliable, efficient, and feature-rich solution for comprehensive electrical monitoring. Its advanced display, durable construction, and seamless connectivity ensure optimal system performance and efficient energy management.
