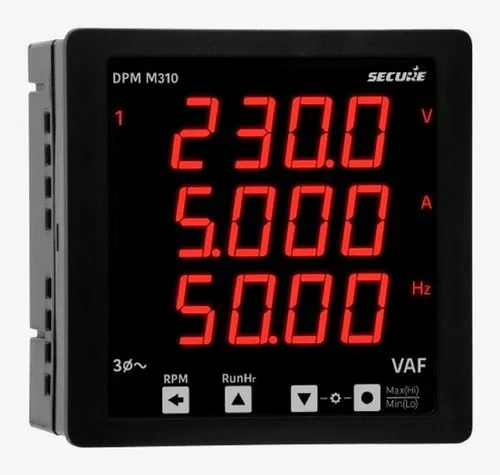

The DPM96M310-2 Three-Phase LED Digital Multi-Function Meter is a versatile and high-precision instrument designed to measure multiple electrical parameters in a single device. Built in a standard 96×96 mm panel size, this meter is ideal for installation in control panels, switchgear, and power distribution systems.
Equipped with a bright LED display, the meter provides clear and accurate readings even in low-light or industrial environments. It enables real-time monitoring of key electrical parameters such as voltage (V), current (A), frequency (Hz), power (W), energy (kWh), and power factor (PF), making it a complete solution for power monitoring and management.
Designed for three-phase electrical systems, the DPM96M310-2 is widely used in industries such as manufacturing, automation, commercial buildings, and energy management systems. It helps operators track system performance, identify inefficiencies, and improve energy usage.
This multi-function meter works with voltage inputs and current transformer (CT) inputs, allowing safe measurement of high current loads. It is engineered with advanced electronics to deliver high accuracy, fast response, and stable performance across all parameters.
Its compact and rugged design ensures easy installation in standard panel cutouts, while the user-friendly interface simplifies operation. With minimal maintenance requirements and long service life, the DPM96M310-2 offers a cost-effective and reliable solution for comprehensive electrical monitoring.
| Parameter | Details |
|---|---|
| Model | DPM96M310-2 |
| Display Type | LED Digital Display |
| Measurement | Multi-Function (V, A, Hz, W, kWh, PF) |
| System | Three Phase |
| Input Voltage | 415V AC (Typical) |
| Input Current | Via CT (e.g., 5A secondary) |
| Frequency Range | 45–65 Hz |
| Accuracy | ±0.5% of Full Scale |
| Display Size | 96 × 96 mm |
| Mounting | Panel Mount |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Protection Level | IP54 (Front Panel) |
