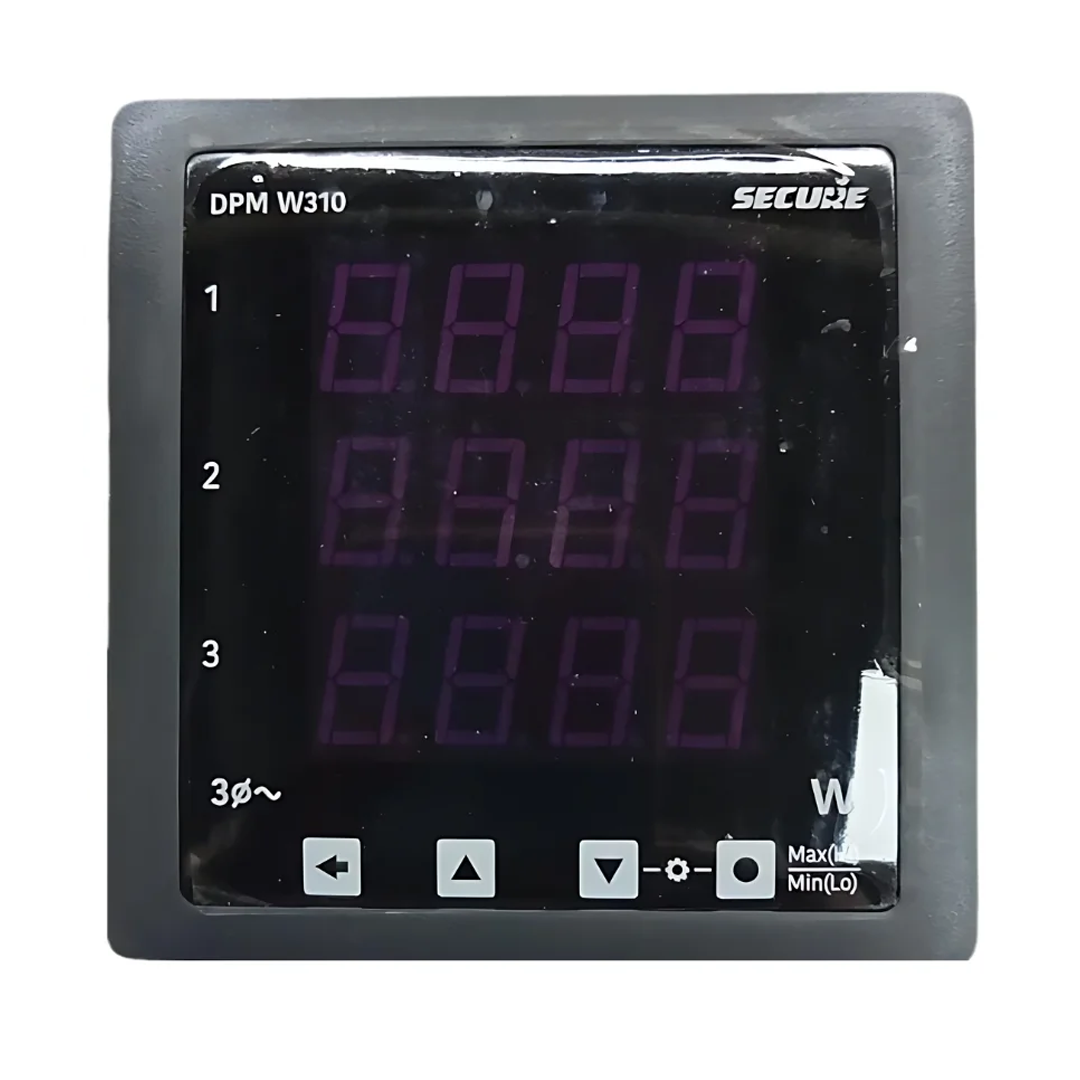

The DPM96W310-2 Three-Phase LED Digital Power Meter is a high-precision instrument designed to measure active power (Watts) in three-phase electrical systems. Built in a standard 96×96 mm panel size, this meter is ideal for installation in industrial control panels, switchgear, and power distribution boards.
Equipped with a bright LED display, the meter ensures clear visibility of readings even in low-light or harsh industrial environments. It provides real-time monitoring of power consumption across all three phases, helping users analyze load conditions, improve energy efficiency, and prevent overload situations.
Designed specifically for three-phase applications, the DPM96W310-2 is widely used in industries such as manufacturing, automation, energy management, and commercial infrastructure. It works with voltage and current inputs (via CTs if required) to calculate accurate power values, making it suitable for high-load systems.
The meter is engineered using advanced electronic components to deliver high accuracy, fast response, and stable performance. Its compact and rugged design allows easy installation in standard panel cutouts, while the simple wiring configuration ensures quick setup for electricians and technicians.
With minimal maintenance and long operational life, the DPM96W310-2 provides a reliable and cost-effective solution for continuous power monitoring in demanding environments.
| Parameter | Details |
|---|---|
| Model | DPM96W310-2 |
| Display Type | LED Digital Display |
| Measurement | Active Power (Watts) |
| System | Three Phase |
| Input Voltage | 415V AC (Typical) |
| Input Current | Via CT (e.g., 5A secondary) |
| Accuracy | ±0.5% of Full Scale |
| Display Size | 96 × 96 mm |
| Mounting | Panel Mount |
| Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Protection Level | IP54 (Front Panel) |
