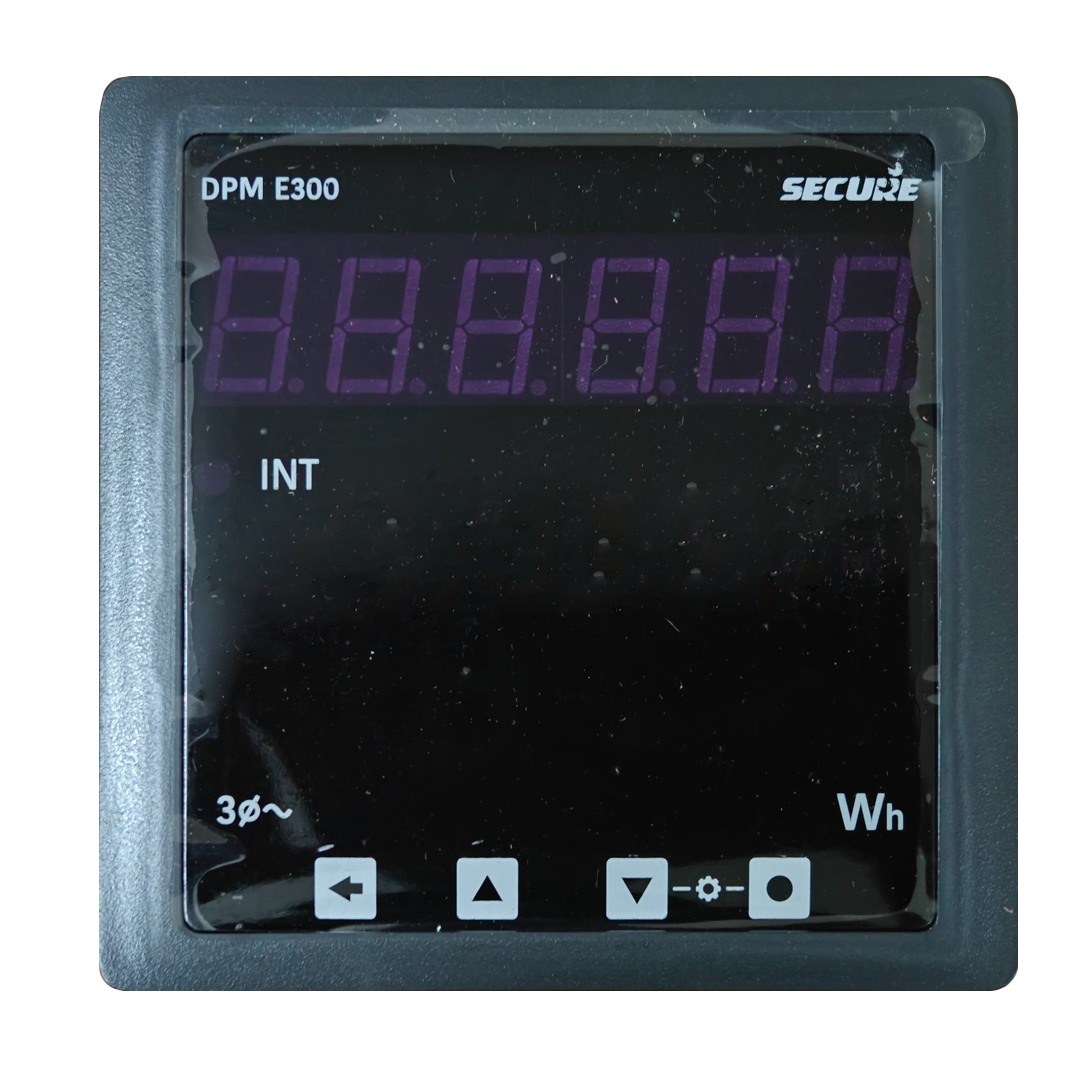

The DPM96E300-2 Three-Phase LED Digital Energy Meter is a high-precision instrument designed for accurate measurement of electrical energy (kWh) in three-phase systems. Built in a standard 96×96 mm panel size, this meter is ideal for installation in industrial control panels, switchgear, and power distribution boards.
Equipped with a bright LED display, the meter ensures clear visibility of readings even in low-light or harsh industrial environments. It provides real-time monitoring of energy consumption, helping users track usage, optimize efficiency, and reduce power costs.
Designed for three-phase electrical systems, the DPM96E300-2 is widely used in industries such as manufacturing, power plants, commercial buildings, and infrastructure projects. It supports connection via current transformers (CTs), allowing safe and accurate measurement of high current loads.
This energy meter is engineered with advanced electronics to deliver high accuracy, stable performance, and long-term reliability. It continuously measures and displays energy consumption, making it an essential tool for energy management and auditing.
Its compact design allows easy panel mounting, while the user-friendly wiring configuration simplifies installation for electricians and technicians. With minimal maintenance requirements and durable construction, the DPM96E300-2 ensures long service life and dependable operation.
| Parameter | Details |
|---|---|
| Model | DPM96E300-2 |
| Display Type | LED Digital Display |
| Measurement | Energy (kWh) |
| System | Three Phase |
| Input Voltage | 415V AC (Typical) |
| Input Current | Via CT (e.g., 5A secondary) |
| Accuracy | ±0.5% of Full Scale |
| Display Size | 96 × 96 mm |
| Mounting | Panel Mount |
| Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Protection Level | IP54 (Front Panel) |
