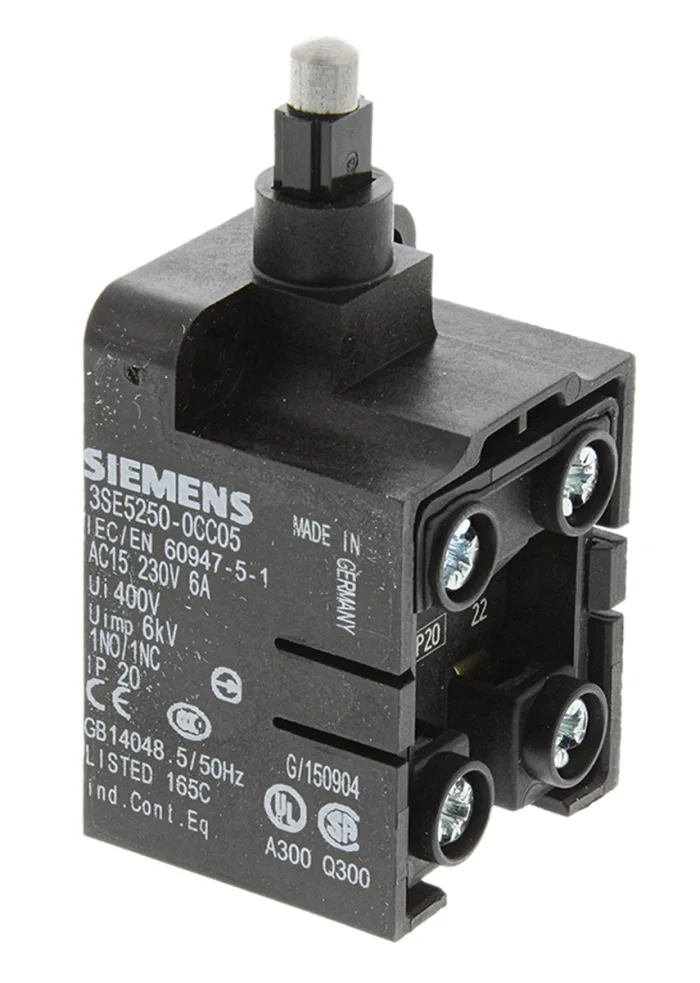

The Siemens SIRIUS 3SE5250-0CC05-8K Position Switch is a compact plastic open-type position switch designed for reliable position detection and machine control applications. It features 1 Normally Open (NO) and 1 Normally Closed (NC) quick-action contacts, a durable metal plunger actuator, and an IP20 protection rating. The switch is suitable for industrial automation, conveyor systems, packaging machinery, and machine tools where precise mechanical position sensing is required. It is designed for easy installation with screw terminals and complies with EN 50047 standards.
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Series | SIRIUS 3SE5 |
| Model Number | 3SE5250-0CC05-8K |
| Product Type | Position Switch |
| Enclosure Material | Plastic (Open Type) |
| Enclosure Size | 30 mm |
| Contact Configuration | 1 NO + 1 NC |
| Contact Type | Quick Action |
| Actuator Type | Metal Plunger |
| Switching Function | Positive Opening |
| Electrical Connection | Screw Terminals |
| Mounting Method | Screw Fixing |
| Degree of Protection | IP20 |
| Operating Voltage | Up to 500 V AC |
| AC-15 Rated Current | 6 A (24/120/240 V AC), 4 A (400 V AC) |
| DC-13 Rated Current | 3 A (24 V DC), 0.55 A (125 V DC), 0.27 A (250 V DC) |
| Operating Temperature | -25°C to +85°C |
| Storage Temperature | -40°C to +90°C |
| Mounting Position | Any |
| Standard | EN 50047 |
| Application | Industrial Position Detection and Machine Automation |
