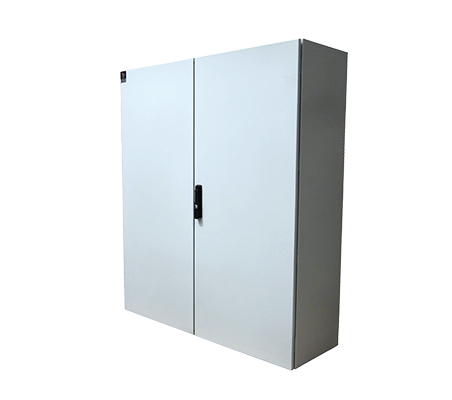

The Bhartia Boxes – BIL-50590 is a heavy-duty industrial double door electrical enclosure designed for secure protection of electrical systems, automation equipment, control panels, and industrial power distribution applications. Manufactured using premium-grade CRCA sheet steel and advanced industrial fabrication technology, this enclosure offers superior durability, reliable protection, and long operational performance in demanding industrial environments.
The BIL-50590 is a double door wall-mounted enclosure with dimensions 1200x1400x400 mm, specially engineered for large industrial installations requiring spacious internal wiring arrangement and safe housing of electrical components. The enclosure provides excellent protection against dust, moisture, accidental contact, and harsh environmental conditions, ensuring safe and uninterrupted operation of industrial electrical systems.
This industrial enclosure is widely used for automation panels, PLC systems, power distribution systems, industrial machinery controls, telecom equipment, process industries, and electrical infrastructure projects. Its spacious internal layout allows organized installation of electrical devices, cable routing systems, relays, terminals, contactors, drives, and monitoring equipment.
The enclosure body and front doors are fabricated using 1.6 mm CRCA sheet steel, while the gland plates and mounting plates are manufactured using heavy-duty 2.0 mm CRCA and GPSP steel for enhanced structural strength and industrial reliability.
The BIL-50590 enclosure features a corrosion-resistant powder-coated surface finish with tricationic zinc phosphating in RAL 7035 color, providing superior resistance against rust, industrial wear, and environmental damage. Its strong construction ensures long service life even under continuous industrial operation.
Designed for professional industrial applications, the enclosure includes hinged double doors with polyurethane foam gasket sealing for improved ingress protection. The secure triangular insert cam locking arrangement ensures safe closure and convenient maintenance accessibility. The enclosure supports smooth door operation with a wide opening angle for easier servicing and installation management.
The BIL-50590 enclosure is rated with IP55 protection as per IEC 60529 standards and IK10 mechanical impact resistance, making it suitable for demanding industrial environments requiring dependable equipment protection.
Its robust industrial design, spacious internal capacity, and reliable protective features make the Bhartia Boxes BIL-50590 an ideal solution for electrical contractors, automation engineers, panel builders, industrial maintenance professionals, and manufacturing industries seeking long-lasting enclosure systems for modern industrial infrastructure projects.
| Specification | Details |
|---|---|
| Product Name | Bhartia Boxes |
| Model Number | BIL-50590 |
| Product Type | Double Door Industrial Enclosure |
| Enclosure Size | 1200x1400x400 mm |
| Door Type | Double Door |
| Number of Doors | 2 |
| Material | CRCA Sheet Steel |
| Body Thickness | 1.6 mm |
| Front Door Thickness | 1.6 mm |
| Gland Plate Thickness | 2.0 mm |
| Mounting Plate Thickness | 2.0 mm GPSP Steel |
| Surface Finish | Powder Coated with Zn Phosphating |
| Color | RAL 7035 |
| Protection Class | IP55 |
| Impact Resistance | IK10 |
| Door Opening Angle | 120° / 180° |
| Lock Type | Triangular Insert Cam Lock |
| Mounting Type | Wall Mount |
| Application | Industrial Electrical Systems |
| Weight | Approx. 100–150 Kg |
| Maintenance | Low Maintenance |
Technical details sourced from BCH enclosure product catalogues and industrial product listings.
Suitable for housing industrial electrical control systems and large distribution panels.
Ideal for PLC panels, automation controls, industrial drives, and process control equipment.
Provides secure protection for industrial power management and distribution applications.
Used for industrial machinery controls, monitoring devices, and automation systems.
Suitable for communication systems and industrial networking equipment installations.
Widely used in factories and production facilities requiring heavy-duty enclosure protection.
Ideal for chemical plants, engineering industries, and industrial process automation systems.
Used in large commercial projects and infrastructure-based electrical systems.
Manufactured using premium-quality CRCA steel for superior strength and durability.
Provides spacious mounting area for organized cable management and electrical component installation.
Protects electrical systems against dust, moisture, and industrial environmental conditions.
Powder-coated surface improves durability and resistance against rust and industrial wear.
Double door structure allows easy access and efficient maintenance operations.
Ensures reliable ingress protection and strong mechanical impact resistance.
Supports convenient wall mounting and professional industrial installation standards.
Designed for continuous industrial operation with minimal maintenance requirements.
Industrial electrical enclosures are essential for maintaining safe, organized, and efficient operation of electrical systems. Proper enclosure systems help protect sensitive electrical equipment from environmental exposure, dust, moisture, accidental contact, and industrial damage.
The Bhartia Boxes BIL-50590 enclosure improves cable management, installation efficiency, equipment organization, and operational safety. Its heavy-duty construction and spacious internal layout support reliable industrial performance across automation systems, manufacturing plants, power distribution systems, and industrial infrastructure projects.
Using high-quality industrial enclosures also helps extend equipment lifespan, reduce maintenance downtime, and improve overall system reliability in demanding industrial applications.
