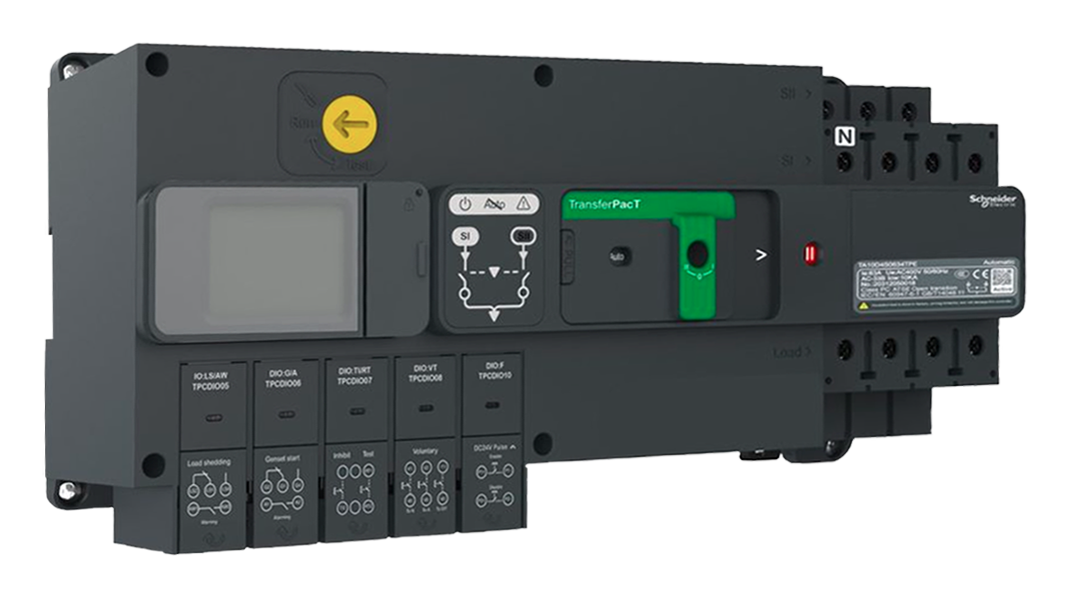

🔹 Schneider Electric TransferPacT Active Automatic – TA1AD4L16H4TPE (1600A, 4 Pole ATS)
The Schneider TransferPacT Active TA1AD4L16H4TPE is a premium high-capacity Automatic Transfer Switch (ATS) designed for reliable switching between mains supply and generator/alternate source in large-scale low-voltage power distribution systems.
It is part of Schneider Electric’s advanced TransferPacT Active TA1A series, engineered for mission-critical applications requiring uninterrupted power continuity, intelligent monitoring, and fast automatic transfer performance.
This model is rated at 1600A with a 4-pole configuration, making it suitable for three-phase systems with neutral switching, widely used in large industrial plants, data centers, hospitals, airports, and infrastructure projects.
The device continuously monitors voltage, frequency, and power quality of both sources and automatically transfers the load during mains failure. Once stable power is restored, it safely switches back without manual intervention.
It includes a built-in LCD-HMI interface, enabling real-time status display, alarms, configuration settings, and manual/automatic operation control for maintenance and system diagnostics.
• Schneider Electric TransferPacT Active TA1A series
• Model: TA1AD4L16H4TPE
• 1600A rated current
• 4-Pole configuration (with neutral switching)
• Automatic mains–generator transfer system
• Integrated LCD-HMI display for control & monitoring
• Real-time voltage and frequency supervision
• High-speed transfer for critical loads
• Manual override and maintenance mode
• Designed for heavy industrial infrastructure
• IEC 60947-6-1 compliant ATS system
| Parameter | Specification |
|---|---|
| Product Type | Automatic Transfer Switch (ATS) |
| Model Number | TA1AD4L16H4TPE |
| Brand | Schneider Electric |
| Poles | 4 Pole |
| Rated Current | 1600A |
| Frame Size | TA1A 1600A frame |
| System Type | Three Phase + Neutral |
| Utilization Category | AC-33B |
| Control Type | Automatic + Manual |
| Display | LCD-HMI interface |
| Rated Voltage | 400V AC |
| Frequency | 50/60 Hz |
| Application | Mission-critical power transfer systems |
