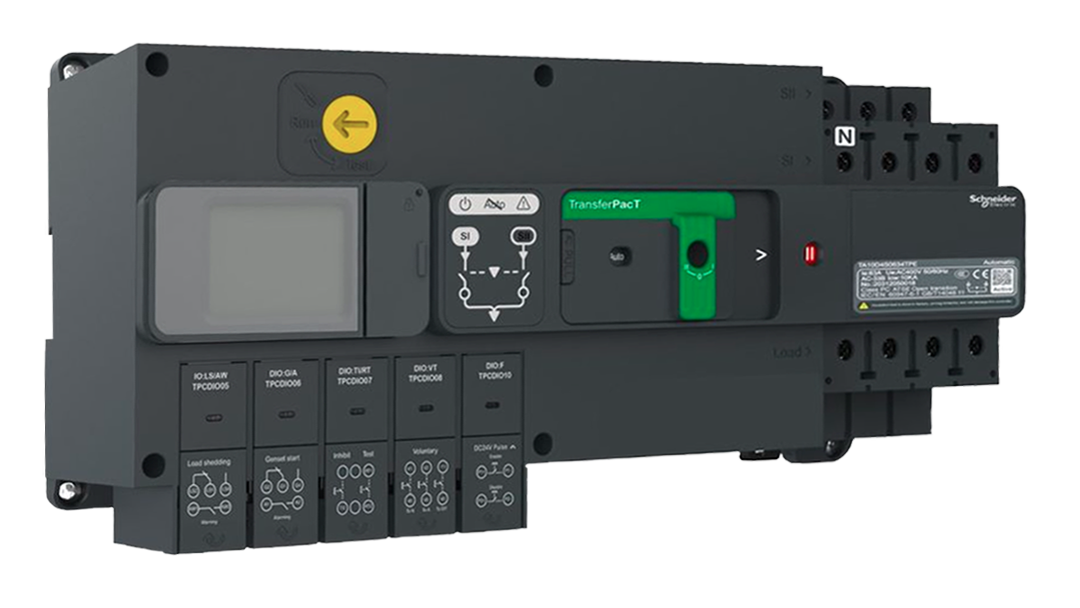

🔹 Schneider Electric TransferPacT Active Automatic – TA10D2L0803TPE (80A, 2 Pole ATS)
🔹 Product Description
The Schneider TransferPacT Active TA10D2L0803TPE is an intelligent Automatic Transfer Switch (ATS) designed for reliable switching between mains supply and generator backup in single-phase electrical systems.
This model is part of the TransferPacT Active series, which features smart monitoring, digital control, and fast automatic transfer to ensure uninterrupted power for critical loads.
It is rated at 80A with a 2-pole configuration, making it suitable for residential, commercial, and light industrial applications where continuous power supply is required.
The device continuously monitors voltage and frequency of both sources and automatically transfers the load during power failure. Once the main supply is stable, it safely returns the load back to mains. It also includes manual override and LCD display for real-time status and diagnostics.
🔹 Key Features
• Schneider Electric TransferPacT Active series
• Model: TA10D2L0803TPE
• 80A rated current
• 2-Pole configuration (single-phase systems)
• Automatic mains–generator transfer function
• Integrated LCD display for monitoring & diagnostics
• Fast switching with high reliability
• Manual override mode available
• Compact 100A frame size design
• Real-time voltage and frequency monitoring
• IEC 60947-6-1 compliant design
| Parameter | Specification |
|---|---|
| Product Type | Automatic Transfer Switch (ATS) |
| Model Number | TA10D2L0803TPE |
| Brand | Schneider Electric |
| Poles | 2 Pole |
| Rated Current | 80A |
| System Type | Single Phase (Phase–Neutral) |
| Frame Size | 100A frame |
| Operation Mode | Automatic + Manual |
| Display | LCD interface |
| Standard | IEC 60947-6-1 |
| Application | Mains–Generator changeover |
