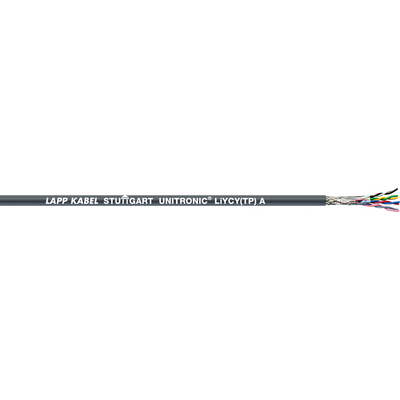

UNITRONIC® LiYCY (TP) 6x2x0,25 is a high-quality shielded twisted pair (TP) data cable designed for precise and interference-free signal transmission in industrial and commercial environments. This cable consists of 6 twisted pairs (12 cores) with 0.25 mm² conductors, ensuring excellent signal stability and reduced crosstalk.
Each pair is twisted to minimize electromagnetic interference, while the overall tinned copper braid shielding provides additional protection against external electrical disturbances (EMI). This makes the cable ideal for applications where high data accuracy and noise immunity are critical.
Its flexible design and durable PVC sheath make it easy to install and suitable for long-term use in demanding environments.
The UNITRONIC® LiYCY (TP) 6x2x0,25 is engineered for high-performance data and signal transmission, especially in systems requiring multiple paired connections. The twisted pair construction ensures clean and stable communication signals, making it a preferred choice for sensitive electronic systems.
With robust materials and precise manufacturing, the cable offers excellent mechanical strength, flexibility, and consistent electrical performance.
Cable Type: Shielded Twisted Pair Data Cable
Brand: LAPP
Product Name: UNITRONIC® LiYCY (TP)
Configuration: 6 x 2 x 0.25 mm²
Number of Cores: 12 (6 Twisted Pairs)
Conductor Material: Bare Copper
Insulation Material: PVC
Shielding: Tinned Copper Braided Shield
Outer Sheath Material: PVC
Outer Sheath Color: Grey (RAL 7032)
Voltage Rating: 250 V
Temperature Range:
Fixed Installation: -30°C to +80°C
Flexing: -5°C to +70°C
Minimum Bending Radius:
Fixed Installation: 6 × Cable Diameter
Flexible Installation: 10 × Cable Diameter
