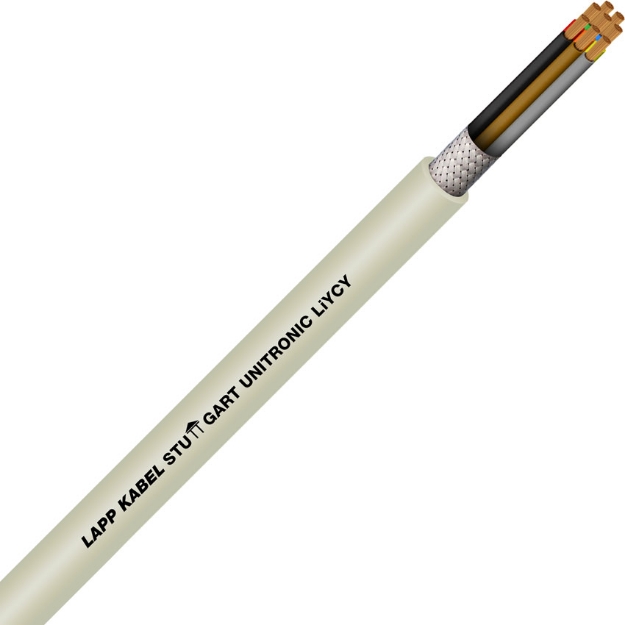

UNITRONIC® LiYCY 8x0.25 is a high-quality shielded data transmission cable designed for reliable signal communication in industrial environments. The cable consists of 8 cores with 0.25 mm² fine-stranded copper conductors, ensuring excellent flexibility and stable electrical performance.
The cable is equipped with a tinned copper braided shield, which effectively protects signals from electromagnetic interference (EMI). Its PVC insulated cores and durable grey PVC outer sheath (RAL 7032) provide mechanical protection and long service life.
UNITRONIC® LiYCY cables are widely used in automation systems, control panels, instrumentation equipment, and industrial communication systems where accurate and interference-free signal transmission is required.
Brand: LAPP
Product Name: UNITRONIC® LiYCY
Cable Type: Shielded Data Transmission Cable
Configuration: 8 x 0.25 mm²
Number of Cores: 8
Conductor Material: Fine Stranded Bare Copper
Core Insulation: PVC
Shielding: Tinned Copper Braided Shield
Outer Sheath Material: PVC
Outer Sheath Colour: Grey (RAL 7032)
Nominal Voltage: 250 V
Temperature Range
Fixed Installation: -40°C to +80°C
Flexible Installation: -5°C to +70°C
Minimum Bending Radius
Fixed Installation: 6 × Cable Diameter
Flexible Installation: 10 × Cable Diameter
