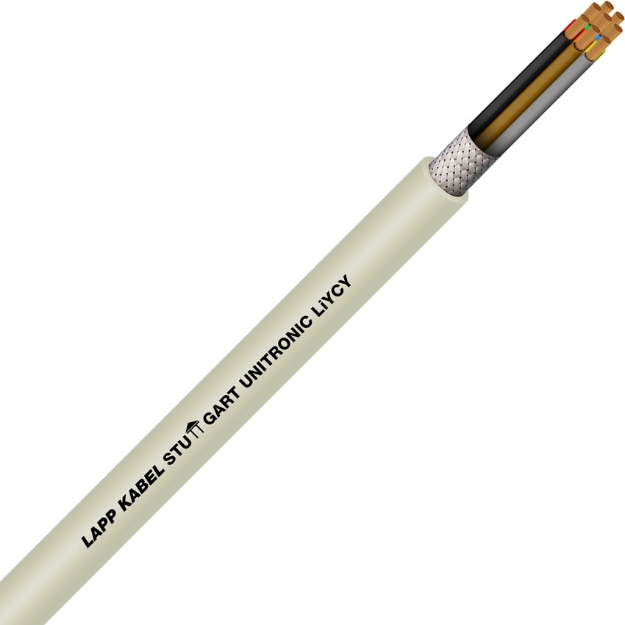

UNITRONIC® LiYCY 7x0.25 is a high-quality shielded data transmission cable designed for reliable signal and control communication in industrial environments. The cable consists of 7 cores with 0.25 mm² fine-stranded copper conductors, providing excellent flexibility and electrical performance.
The cable features a tinned copper braided shield that protects signals from electromagnetic interference (EMI). The PVC insulated cores and grey PVC outer sheath (RAL 7032) ensure durability and long service life in industrial applications.
UNITRONIC® LiYCY cables are commonly used in automation systems, instrumentation equipment, control panels, and electronic communication systems where stable and interference-free signal transmission is required.
Brand: LAPP
Product Name: UNITRONIC® LiYCY
Cable Type: Shielded Data Cable
Configuration: 7 x 0.25 mm²
Number of Cores: 7
Conductor Material: Fine Stranded Bare Copper
Core Insulation: PVC
Shielding: Tinned Copper Braided Shield
Outer Sheath Material: PVC
Outer Sheath Colour: Grey (RAL 7032)
Nominal Voltage: 250 V
Temperature Range
Fixed Installation: -40°C to +80°C
Flexible Installation: -5°C to +70°C
Minimum Bending Radius
Fixed Installation: 6 × Cable Diameter
Flexible Installation: 10 × Cable Diameter
