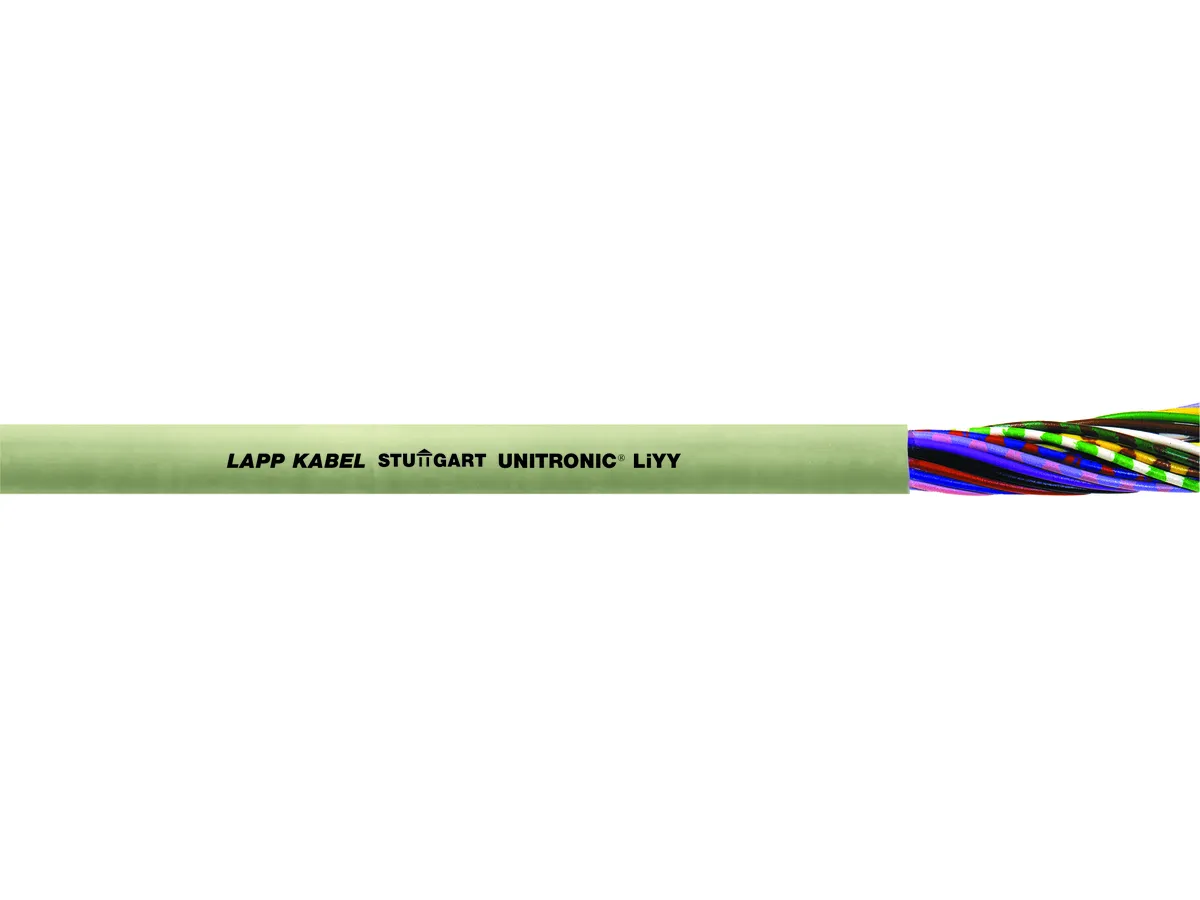

UNITRONIC® LiYY 2x0.25 is a high-quality unscreened data transmission cable designed for reliable signal communication in industrial and electronic environments. The cable contains 2 cores with 0.25 mm² conductors, ensuring stable signal transfer for control and communication applications.
The fine-stranded copper conductors provide flexibility and excellent conductivity, while the PVC insulation and grey outer sheath (RAL 7032) ensure durability and easy installation. UNITRONIC® LiYY cables are ideal for low-frequency signal transmission and control wiring.
These cables are widely used in automation systems, control cabinets, electronic equipment, instrumentation systems, and machine manufacturing where reliable data communication is required.
Brand: LAPP
Product Name: UNITRONIC® LiYY
Cable Type: Unscreened Data Transmission Cable
Configuration: 2 x 0.25 mm²
Number of Cores: 2
Conductor Material: Fine Stranded Bare Copper
Core Insulation: PVC
Shielding: No Shield (Unscreened)
Outer Sheath Material: PVC
Outer Sheath Colour: Grey (RAL 7032)
Nominal Voltage: 250 V
Temperature Range
Fixed Installation: -40°C to +80°C
Flexible Installation: -5°C to +70°C
Minimum Bending Radius
Fixed Installation: 6 × Cable Diameter
Flexible Installation: 10 × Cable Diameter
