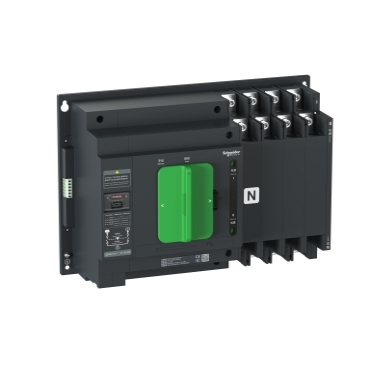

🔹 WATSN Remote Transfer Switch – NR01004 (100A, 4 Pole, Remote Operated Changeover Switch)
The WATSN NR01004 Remote Transfer Switch (RTSE) is a reliable remote-operated changeover switch designed for controlled transfer of electrical loads between two independent power sources. It is widely used in commercial, industrial, and critical power applications where source transfer is managed remotely through PLCs, generator controllers, SCADA systems, or Building Management Systems (BMS).
Featuring a 100A rated current and 4-pole configuration, the NR01004 provides complete switching of three phases and neutral, ensuring enhanced electrical isolation and system safety. Built on the proven Class PC transfer switch platform, it offers dependable switching performance, long operational life, and secure power source management.
The switch incorporates a three-position mechanism (Source I – OFF – Source II), allowing safe transfer operations and maintenance isolation. Its compact design and robust construction make it suitable for generator backup systems, industrial control panels, and critical power distribution networks.
• Genuine WATSN Remote Transfer Switch
• Model: NR01004
• Rated Current: 100A
• 4-Pole configuration (3P+N)
• Remote-operated transfer switch (RTSE)
• Class PC transfer switch technology
• Three-position operation (Source I – OFF – Source II)
• Remote electrical control capability
• Open transition switching operation
• Suitable for PLC, BMS, and SCADA integration
• High electrical and mechanical durability
• Compact panel-mount design
• IEC 60947-6-1 compliant
| Parameter | Specification |
|---|---|
| Product Type | Remote Transfer Switch (RTSE) |
| Model Number | NR01004 |
| Series | WATSN |
| Rated Current (Ie) | 100A |
| Number of Poles | 4 Pole |
| Rated Operational Voltage | 400V AC |
| Frequency | 50/60 Hz |
| Operation Type | Remote Electrical Operation |
| Transfer Switch Class | PC Class |
| Utilization Category | AC-33B |
| Transfer Type | Open Transition |
| Operating Positions | Source I – OFF – Source II |
| Rated Insulation Voltage (Ui) | 800V |
| Rated Impulse Withstand Voltage (Uimp) | 8kV |
| Mounting Type | Panel Mounted |
| Standard Compliance | IEC 60947-6-1 |
| Application | Remote Power Source Changeover |
