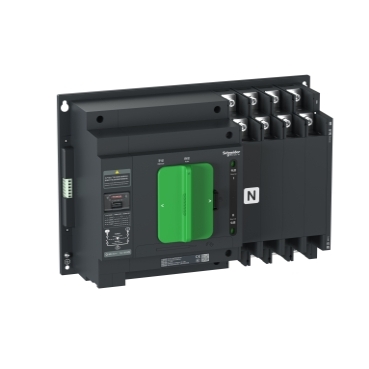

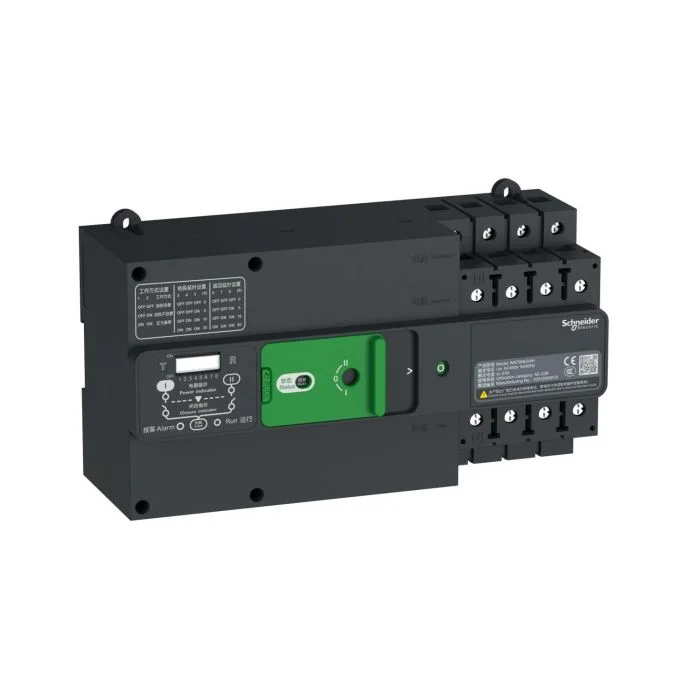

🔹 WATSN Automatic Transfer Switch – NA00632V (63A, 2 Pole, Type A, Under/Over Voltage Protection)
The WATSN NA00632V Automatic Transfer Switch (ATS) is a reliable dual-power transfer solution designed for automatic switching between the main utility supply and a backup power source during power interruptions.
Manufactured under the WATSN series, this ATS features a 63A rated current, 2-pole configuration, and Type A controller with under-voltage and over-voltage protection, ensuring continuous power availability and protection for critical electrical loads. The switch continuously monitors power conditions and automatically transfers the load to the alternate source whenever the primary supply fails or operates outside acceptable voltage limits.
The NA00632V is suitable for residential, commercial, and light industrial applications where uninterrupted power is essential. Its compact design, microprocessor-based control, and high switching reliability make it ideal for generator backup systems, UPS systems, telecom installations, and building power distribution networks.
• WATSN Automatic Transfer Switch
• Model: NA00632V
• Rated Current: 63A
• 2-Pole configuration
• Type A intelligent controller
• Under-voltage and over-voltage protection
• Automatic transfer between utility and backup source
• Microprocessor-controlled operation
• Fast and reliable switching performance
• Compact design for panel installation
• Suitable for generator and backup power systems
• High operational reliability and safety
| Parameter | Specification |
|---|---|
| Product Type | Automatic Transfer Switch (ATS) |
| Model Number | NA00632V |
| Series | WATSN |
| Rated Current | 63A |
| Number of Poles | 2 Pole |
| Controller Type | Type A |
| Protection Function | Under & Over Voltage Protection |
| Electrical Class | PC Class |
| Operation Mode | Automatic Transfer |
| Transfer Type | Open Transition |
| Rated Voltage | 230/240V AC |
| Installation | Panel Mounted |
| Application | Utility–Generator Changeover |
