The Enclosure Systems – BIL-60110 is a premium-quality industrial electrical enclosure designed for safe housing and protection of electrical components, automation systems, control panels, industrial wiring, and power distribution equipment. Manufactured using high-grade CRCA sheet steel with advanced industrial fabrication standards, this enclosure delivers superior durability, reliable protection, and long operational life in demanding industrial and commercial environments.
The BIL-60110 is a single door wall-mounted enclosure with dimensions 400x300x200 mm, specially engineered for industrial applications requiring secure installation and organized management of electrical and automation systems. The enclosure protects internal equipment against dust, moisture, accidental contact, and environmental exposure while ensuring safe and efficient industrial operation.
Designed for industrial reliability, the enclosure body and front door are fabricated using 1.2 mm CRCA sheet steel, while the gland plate is manufactured using 2.0 mm CRCA steel and the mounting plate uses 2.0 mm GPSP steel for enhanced structural strength and stable equipment mounting.
The enclosure features a corrosion-resistant powder-coated surface finish with tricationic zinc phosphating in RAL 7035 color, offering superior resistance against rust, industrial wear, and environmental damage. This high-quality protective finish helps maintain long-term durability and professional industrial appearance.

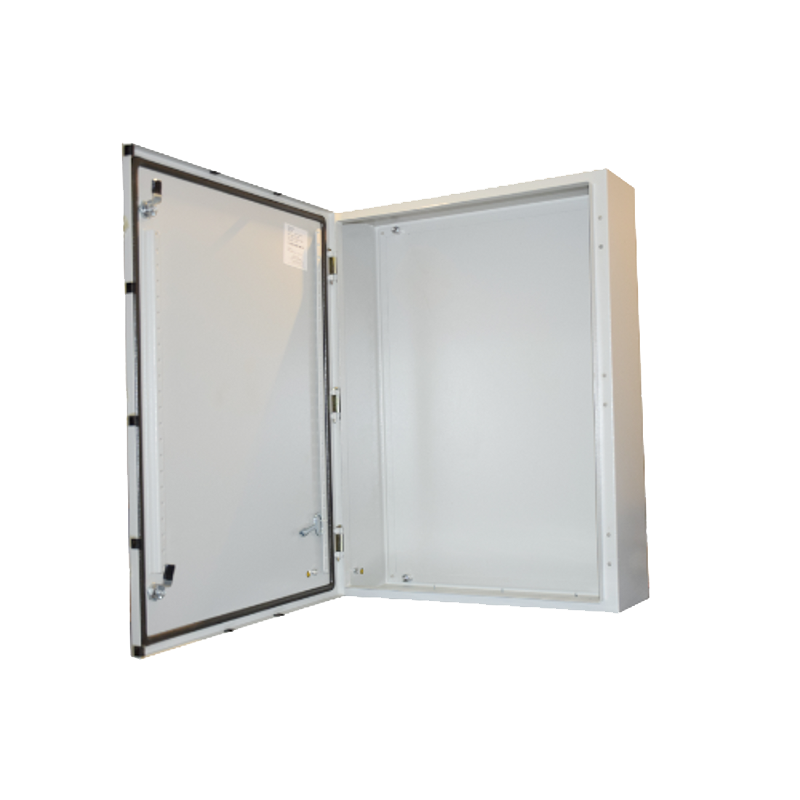

The BIL-60110 enclosure includes a hinged single door fitted with a polyurethane foam gasket sealing system that enhances ingress protection and helps safeguard internal electrical systems against dust and water exposure. The enclosure supports a 180-degree door opening angle, allowing easy installation access and convenient maintenance operations. It also features a secure triangular insert cam lock arrangement for reliable enclosure safety and secure operation.
This industrial enclosure is rated with IP55 protection as per IEC 60529 standards and provides IK10 mechanical impact resistance, making it suitable for demanding industrial applications requiring dependable environmental and mechanical protection.
The BIL-60110 enclosure is widely used in industrial automation systems, electrical control panels, machine control applications, telecom installations, power distribution systems, manufacturing plants, and commercial electrical infrastructure projects. Its compact yet spacious internal design supports organized cable routing and efficient mounting of electrical devices such as PLCs, relays, terminals, switches, contactors, and monitoring equipment.
Its heavy-duty construction, easy wall-mounted installation, low maintenance requirements, and reliable industrial-grade protective features make it an ideal enclosure solution for electrical contractors, automation engineers, industrial panel builders, and maintenance professionals seeking long-lasting and efficient protection systems for modern industrial applications.
| Specification | Details |
|---|---|
| Product Name | Enclosure Systems |
| Model Number | BIL-60110 |
| Product Type | Single Door Industrial Enclosure |
| Enclosure Size | 400x300x200 mm |
| Door Type | Single Door |
| Material | CRCA Sheet Steel |
| Body Thickness | 1.2 mm |
| Front Door Thickness | 1.2 mm |
| Gland Plate Thickness | 2.0 mm |
| Mounting Plate Thickness | 2.0 mm GPSP Steel |
| Surface Finish | Powder Coated with Zn Phosphating |
| Color | RAL 7035 |
| Protection Class | IP55 |
| Impact Resistance | IK10 |
| Door Opening Angle | 180° |
| Lock Type | Triangular Insert Cam Lock |
| Mounting Type | Wall Mount |
| Application | Industrial Electrical Systems |
| Weight | Approx. 8 Kg |
| Maintenance | Low Maintenance |
Technical specifications sourced from BCH enclosure catalogues and industrial product documentation.
Suitable for housing industrial electrical control systems and panel equipment safely.
Ideal for PLC panels, automation controls, relays, and industrial process systems.
Provides reliable protection for industrial power distribution and electrical management applications.
Used for machine automation controls, industrial monitoring systems, and relay installations.
Suitable for communication infrastructure and networking equipment installations.
Supports organized cable routing and secure electrical wiring management.
Widely used in factories and production plants for automation and electrical installations.
Suitable for industrial infrastructure and commercial electrical system projects.
Manufactured using premium-quality CRCA steel for reliable industrial performance and long service life.
Protects electrical systems against dust, moisture, and industrial environmental conditions.
Powder-coated surface improves durability and resistance against rust and wear.
Provides organized installation space for electrical components and cable management.
Supports quick wall mounting and convenient servicing access.
IP55 ingress protection and IK10 impact resistance ensure dependable industrial safety.
Improves installation efficiency and operational reliability.
Designed for continuous industrial operation with minimal maintenance requirements.
