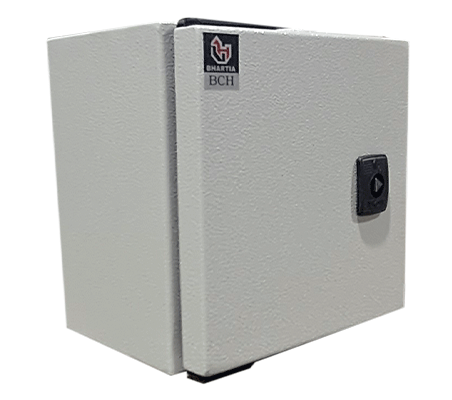

The Enclosure Systems – BIL - 50010 is a compact and highly efficient industrial electrical enclosure designed to protect electrical equipment, control systems, automation devices, and power distribution components from harsh environmental conditions. Manufactured using premium-quality CRCA steel, this enclosure offers exceptional durability, superior protection, and long service life for industrial applications.
In modern industrial environments, electrical equipment is constantly exposed to dust, moisture, vibration, and accidental mechanical impact. The BIL - 50010 enclosure system is specially engineered to provide maximum protection for sensitive electrical components while maintaining easy accessibility for installation and maintenance.
Its compact dimensions make it an ideal choice for small electrical control panels, automation systems, machine controls, and industrial applications where space optimization is important. The enclosure delivers excellent safety, reliability, and operational performance.
✔ Premium CRCA steel construction
✔ IP55 dust and water protection
✔ IK10 impact resistance
✔ Powder-coated corrosion-resistant finish
✔ Compact industrial design
✔ 180° door opening
✔ PU foam gasket sealing
✔ Secure cam locking arrangement
✔ Easy installation and maintenance
✔ Long-lasting industrial durability
The BIL - 50010 enclosure is manufactured using high-quality CRCA sheet steel to provide excellent mechanical strength and structural rigidity. The enclosure body and front door are built to withstand challenging industrial conditions while protecting valuable electrical components.
The enclosure effectively safeguards equipment from:
Its rugged construction ensures dependable performance and long-term reliability in demanding industrial environments.
The enclosure body, door, and gland plate are treated with powder coating and tricationic zinc phosphating, providing superior protection against corrosion and environmental damage.
✔ Improved rust resistance
✔ Better moisture protection
✔ Long-lasting finish
✔ Reduced maintenance requirements
✔ Professional industrial appearance
The enclosure is supplied in RAL 7035 Grey, which offers a clean and attractive industrial finish suitable for various applications.
The BIL - 50010 features a practical and organized internal structure that allows efficient installation of electrical and automation equipment.
✔ PLC Systems
✔ Electrical Control Panels
✔ Terminal Blocks
✔ Relays and Contactors
✔ Distribution Systems
✔ Automation Equipment
✔ Industrial Control Devices
✔ Monitoring Systems
The mounting plate supports proper equipment installation while allowing clean cable routing and organized wiring management.
The enclosure is specifically designed to improve electrical safety and equipment reliability.
✔ Prevents dust accumulation
✔ Reduces moisture exposure
✔ Protects sensitive equipment
✔ Improves operational safety
✔ Enhances equipment life
✔ Reduces maintenance costs
✔ Supports continuous operation
Its IP55 protection rating provides reliable protection against dust ingress and water splashes, making it suitable for various industrial applications.
The BIL - 50010 enclosure is supplied with:
The door opens up to 180 degrees, allowing easy access during installation, inspection, and maintenance operations. This feature helps technicians perform servicing tasks quickly and efficiently.
The BIL - 50010 enclosure system is widely used in:
| Specification | Details |
|---|---|
| Model | BIL - 50010 |
| Enclosure Size | 200 × 300 × 150 mm |
| Mounting Plate Size | 140 × 276 mm |
| Material | CRCA Steel |
| Body Thickness | 1.2 mm CRCA |
| Door Thickness | 1.2 mm CRCA |
| Gland Plate Thickness | 2.0 mm CRCA |
| Mounting Plate Thickness | 2.0 mm GPSP |
| Surface Finish | Powder Coated |
| Color | RAL 7035 Grey |
| Protection Rating | IP55 |
| Impact Resistance | IK10 |
| Door Type | Single Door |
| Number of Doors | 1 |
| Number of Locks | 1 |
| Door Opening | 180° |
| Lock Type | Triangular Cam Lock |
| Weight | Approximately 4 kg |
