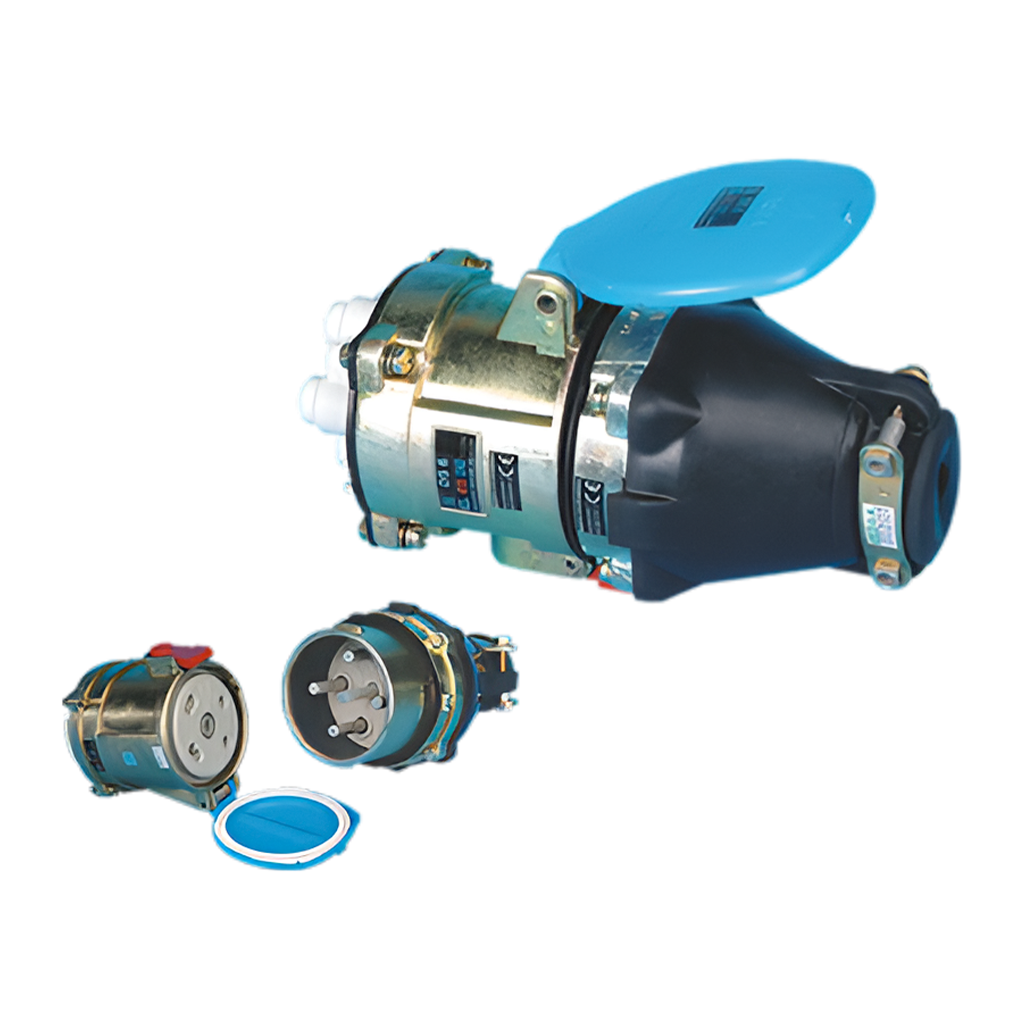

The DS Series Heavy Duty Metal Plug & Socket with Integral Switching Device (Model: DS9B7A1) is a premium high-capacity industrial connector engineered for critical power applications requiring maximum safety, durability, and continuous high-load performance. As a refined variant in the DS9 range, this model is designed to deliver enhanced operational stability and smooth switching performance in demanding industrial environments.
Constructed with a reinforced heavy-duty metal enclosure and advanced insulation system, the DS9B7A1 is built to withstand extreme working conditions such as heavy vibration, high temperatures, dust exposure, and outdoor installations. Its robust design ensures long-lasting performance and reliability in large-scale industrial operations.
The unit is equipped with a 5-pin configuration (3 Phase + Neutral + Earth), making it suitable for three-phase electrical systems. It is optimized to handle very high current loads (up to 125A), making it ideal for powering large industrial machinery, power distribution systems, and high-capacity installations. The high-quality copper alloy contacts provide excellent conductivity, ensuring minimal energy loss and stable current flow during continuous operation.
A key feature of the DS9B7A1 is its integral interlocked switching mechanism, designed to enhance safety during operation. The system ensures that:
This significantly reduces the risk of arc flash, electrical hazards, and equipment damage, ensuring safe handling in high-power environments.
Compared to the A-type variant, the DS9B7A1 is designed with a focus on improved switching precision and long operational life, making it suitable for applications involving frequent switching cycles and continuous industrial use.
The product features a heavy-duty locking mechanism that ensures a secure and vibration-resistant connection. Its panel-mounted design allows easy integration into control panels, switchboards, and distribution systems.
The DS9B7A1 is widely used in power plants, heavy manufacturing industries, large automation systems, and high-capacity electrical networks, where reliable and safe power control is essential.
In conclusion, the DS9B7A1 offers superior performance in ultra high-capacity industrial applications, combining strength, safety, and precision for critical power connectivity.
