Product Description

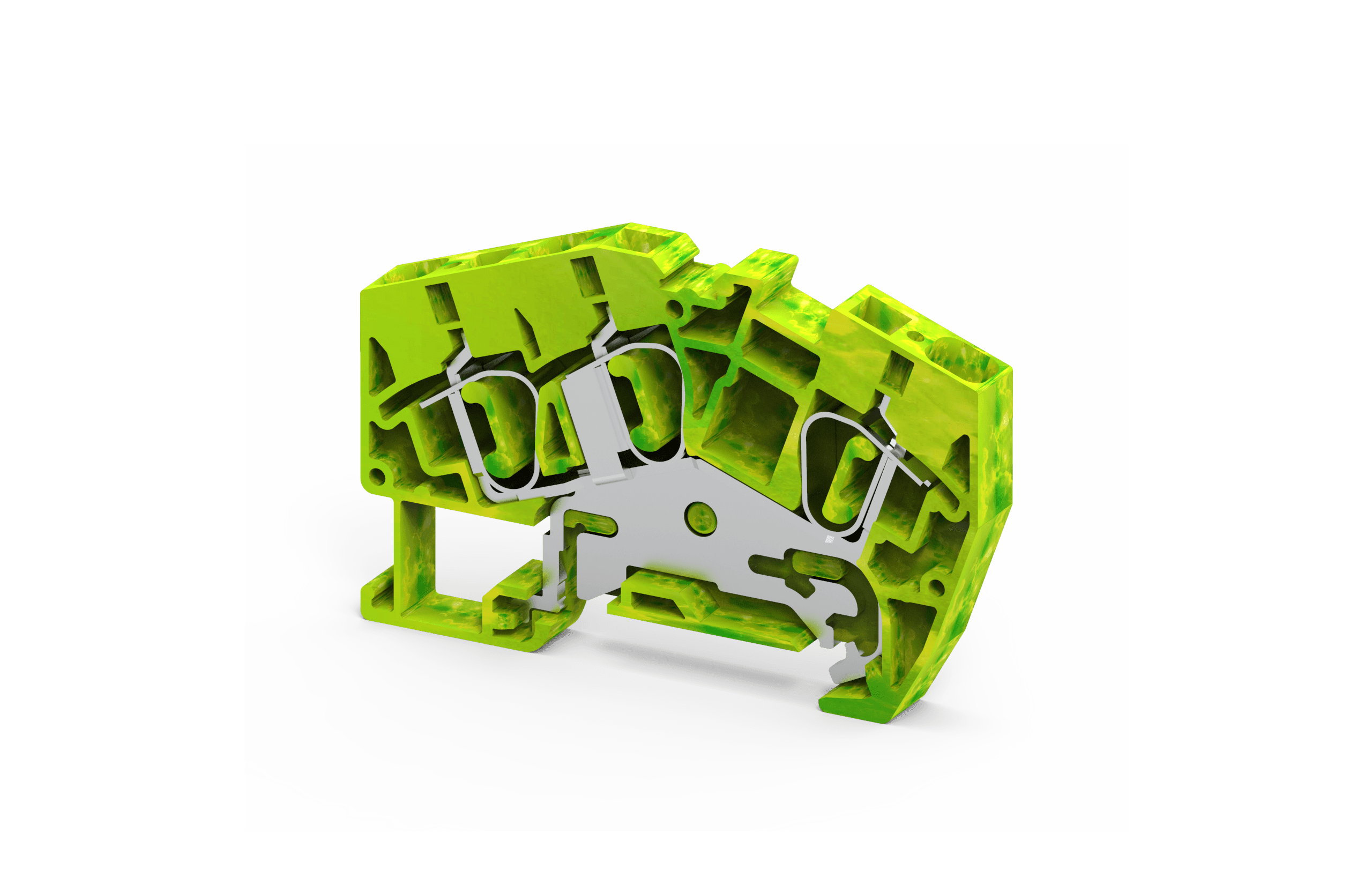

The AGT6/3 is a robust industrial feed-through terminal block designed for safe, reliable, and high-performance electrical connections in control panels, automation systems, and power distribution applications.
It is engineered for higher current handling capacity, strong mechanical strength, and stable electrical conductivity, making it suitable for demanding industrial environments such as machinery control systems, motor connections, and electrical distribution boards.
The AGT series is widely used in modern panel building due to its compact design, vibration resistance, and long-term operational stability.
Working Principle
The AGT6/3 functions as a high-quality electrical pass-through connector, allowing current to flow from one side of the terminal to the other through a secure internal conductive clamp.
When a conductor is inserted and tightened, the internal metal clamping system ensures strong grip force and stable electrical contact, reducing resistance and preventing loosening due to vibration or thermal expansion.
This ensures continuous and safe power transmission even under heavy industrial load conditions.
Key Features
-
High current industrial terminal block
-
Strong and stable feed-through connection system
-
Compact modular DIN rail mounting design
-
High mechanical strength for industrial environments
-
Flame-retardant and durable housing material
-
Low contact resistance for efficient power transmission
-
Vibration and shock resistant construction
-
Easy installation and wiring system
-
Long service life with minimal maintenance
-
Suitable for heavy-duty industrial applications
Technical Specifications
General Information
-
Model: AGT6/3
-
Product Type: Industrial Feed-Through Terminal Block
-
Application: High-current electrical connection in control panels
Electrical Specifications
-
Rated Voltage: Up to 800V AC/DC
-
Rated Current: Up to 57A (depending on conductor size and installation conditions)
-
Impulse Withstand Voltage: 8kV
-
Overvoltage Category: III
-
Pollution Degree: 3
-
Frequency: 50/60 Hz
Conductor Specifications
-
Solid Conductor Range: 0.5 mm² to 10 mm²
-
Stranded Conductor Range: 0.5 mm² to 6 mm²
-
Flexible Conductor: Supported with ferrule
-
Connection Type: Screw clamp feed-through system
-
Wire Entry Type: Front entry wiring
-
Stripping Length: 10–12 mm
Mechanical Specifications
-
Mounting Type: DIN Rail 35 mm (NS 35 standard)
-
Housing Material: Polyamide PA66 (Flame Retardant grade)
-
Flammability Rating: UL94 V0 equivalent
-
Contact Material: High-conductivity copper alloy
-
Design Type: Modular, heavy-duty stackable structure
-
Color: Grey / industrial standard marking
Environmental Specifications
-
Operating Temperature: -40°C to +85°C
-
Continuous Operating Temperature: Up to +70°C
-
Storage Temperature: -40°C to +90°C
-
Humidity Resistance: Suitable for industrial environments
-
Vibration Resistance: High resistance for machinery use
-
Corrosion Resistance: Standard industrial protection
Safety Features
-
High dielectric insulation strength
-
Flame-retardant housing material
-
Short-circuit resistant design
-
Secure screw clamp connection system
-
Finger-safe terminal construction
-
IEC-style industrial safety compliance
Design Features
The AGT6/3 is designed for heavy-duty industrial applications, offering strong mechanical stability and high electrical performance.
Its screw clamp mechanism ensures maximum contact pressure, which improves conductivity and reduces the risk of loose connections.
The modular DIN rail design allows easy installation in high-density electrical control panels, making it ideal for professional panel builders.
Applications
The AGT6/3 is widely used in industrial and commercial electrical systems:
1. Industrial Automation
-
PLC control panels
-
Machine automation systems
-
Robotics and production lines
2. Power Distribution Systems
-
Electrical distribution boards
-
Motor control centers (MCC)
-
Sub-panel wiring systems
3. Manufacturing Industry
-
Heavy machinery wiring
-
Production equipment control systems
-
Industrial process systems
4. Infrastructure Systems
-
HVAC control panels
-
Building automation systems
-
Utility control systems
5. Electrical Engineering Applications
-
High-current circuit connections
-
Instrumentation systems
-
Control and signal distribution
Advantages
-
Handles high current load efficiently
-
Ensures stable and secure electrical connection
-
Reduces voltage loss and energy wastage
-
High resistance to vibration and heat
-
Easy installation and panel integration
-
Long operational life in harsh environments
-
Improves reliability of electrical systems
-
Suitable for modern industrial automation
Installation Guidelines
-
Mount on standard 35 mm DIN rail securely
-
Ensure correct conductor size selection
-
Strip wires to recommended length before insertion
-
Tighten screws with proper torque
-
Avoid exceeding rated current capacity
-
Maintain proper spacing for heat dissipation
-
Use end clamps for secure positioning
Maintenance Guidelines
-
Periodic inspection of terminal tightness
-
Check for overheating signs in heavy-load systems
-
Keep terminals clean and dust-free
-
Replace damaged units immediately
-
Ensure proper ventilation inside electrical panels
-
Designed for long-term low-maintenance operation
Engineering Summary
The AGT6/3 is a high-performance industrial feed-through terminal block designed for heavy current applications. Its strong mechanical design, high conductivity materials, and secure connection system make it ideal for modern industrial control and power distribution systems.
It ensures safe, stable, and efficient electrical performance even under demanding operating conditions.
